Description

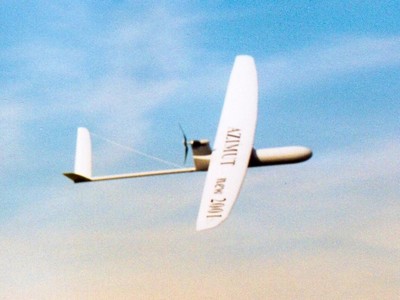

Azimut Mark 2 is a Light weight and close range UAV system for parachutist group, task force, customs, paramilitary operations. Close range surveillance and aero-sonde. The system is portable with two operators. Performances come from an aerodynamic design and optimisation, associate with a high tech composites materials structure, and a very low level power input for cruise speed.
Country : France
Applications : short-range surveillance
Length : 1.82m Wingspan : 2.9m Height : 0.3m
MTOW : 9kg Payload weight : 2kg max
Powerplant : 600W brushless electric motor Power : LiPo batteries
Ceiling : 6000ft Max speed : 60kt
Data link : S-band and radio modem
Endurance : >2hr at 38kt Guidance / tracking : autopilot and GPS
Launcher : hand launcher or portable launcher system Recovery : skid landing or parachute
Payload : IR or CCD camera on 2-axis gimbal steered with real-time video downlink
Range – mission radius :10km
Structure material : composite materials – epoxy, Kevlar, carbon
Status : in production
