Description

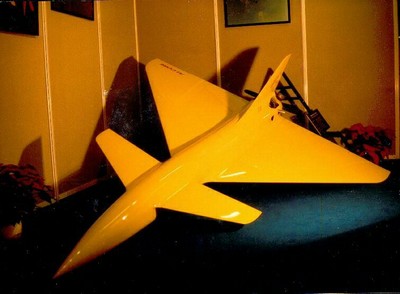

Furtive UAV with high aeronautique performances tested in 1992 by Dassault Electronique for training exercises on radar calibration.
Country : France
Applications : Tactical reconnaissance and surveillance, target acquisition, aerosonde, missile simulation
Length : 3 m Wingspan : 2.6 m Height : 0.67 m
MTOW : 75 kg Payload weight : 20 kg max
Powerplant : 1 two-stroke gasoline engine, four cylinders, 24 hp with a carbon propeller, or turbojet
Ceiling: 3,000 ft Max speed: 173 kt
Data link: S-band
Endurance : 4 hr Guidance / tracking :remote control and GPS
Launcher : conventional wheeled take-off on retractable system or launcher Recovery : wheeled landing, skid or parachute
Payload : IL and colour CDD camera with real-time video down link
Range – mission radius : 50 km
Structure material : composite materials
Status : in production
