Description

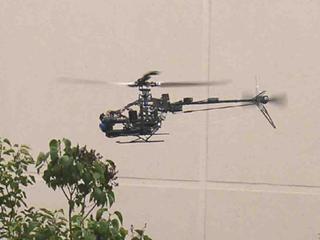

Easycopter is a “pocket” Vtol UAV for urban canyon, using a so little power for fly, less than 200w, that a collision with an human don’t damage his health. The efficiency of the rotor with blades design with large chord is the key of the strategy low power, low RPM and very low noise level.
Country : France
Applications : surveillance
Length : 0.65 m Rotor diameter : 0.65 m
MTOW : 1.6 kg
Powerplant : 180 W brushless electric engine Electrical power : 12 V LiPo batteries
Data link : COTS, 1 km radius or more
Endurance : 20min Guidance / tracking : flight control with GPS and auto stabilization
Launcher : VTOL
Payload : digital still and daylight video camera
Recovery : VTOL
Structure material : composite, all carbon and polyurethane drive belts
Status : in production
