Description

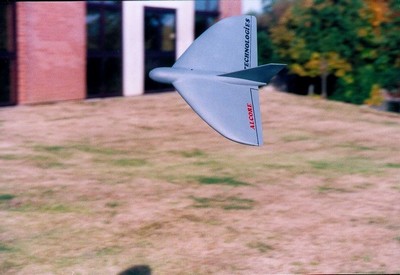

Epsilon 1 is one of the families of several small uav for experiment a development axle on micro uav. Epsilon had experiment also pneumatic motor propulsion, and fly today with electric power. The max speed is also the low speed, result of the size of the model. The operational result is not prove.
Country : France
Applications : short-range reconnaissance and surveillance
Length : 0.38 m Wingspan : 0.48 m Height : 0.1 m
MTOW : 0.45 kg
Powerplant : Li-Po batteries and brushless motor
Ceiling : 300 ft Max speed : 40 kt
Data link : 72 Mhz up, 400 Mhz down
Endurance : 6 min Guidance / tracking : handle control, optical stabilization or piezo gyro
Launcher : hand Recovery : skid landing
Payload : colour CCD camera with real-time video downlink
Range – mission radius : 1 km
Structure material : composite
Status : in development
