In case of generator failure, the battery is used as the prime power source ensuring that the autopilot and other subsystems like the servos and communications continues turned on for a safe landing.
Backup battery can be used also during prefight checks when the engine is turned off or RPMs are low. Also external power can be supplied to charge the battery on ground or for preflight checks.
In case that the generator supplies more voltage than the estimated voltage (30 volts), the powerboard cut off the supply to protect the electronic systems. Then battery is used as power source.
Battery must be 5 cell LiFeP04 16.4V at 18V charging unless you are using any customized version.

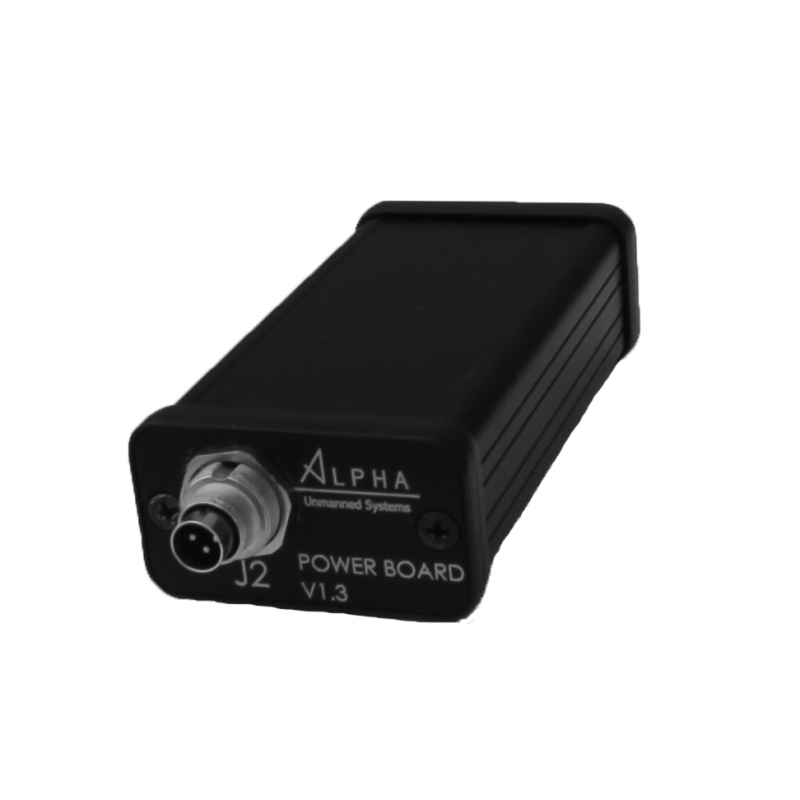

The PB is enclosed in a light aluminum extruded case and the connectors used are industrial high quality connectors. IP67 aluminum milled case can be supplied upon request.
