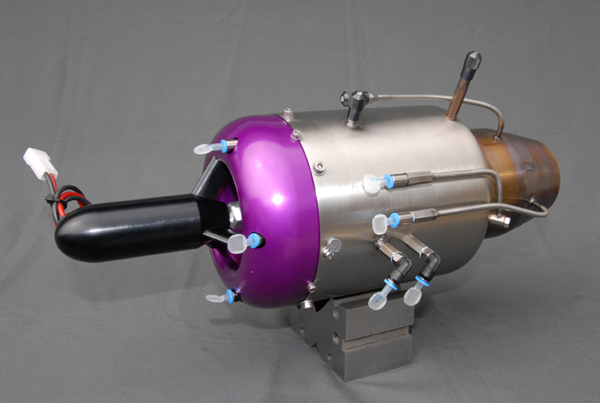

The Olympus HP engine is in production since middle of 2004, already quickly after it waslaunched there came requests form universities and research institutes to modify this engine to an engine with measuring points.
The standard measuring points we offer for the Olympus HP are :
Temperature
Tt3 - Temperature measurement behind diffusor stage.
Tt4 - Temperature measurement before nozzle guide vanes.
Tt5 - Temperature measurement after turbine wheel.
Tt6 - Temperature measurement at exhaust nozzle.
Pressure:
Ps3 - Static pressure behind diffusor stage.
Pt3 - Total pressure behind diffusor stage.
Pt4 - Total pressure before nozzle guide vanes.
Pt5 - Total pressure after turbine wheel.
