HIGH RELIABILITY

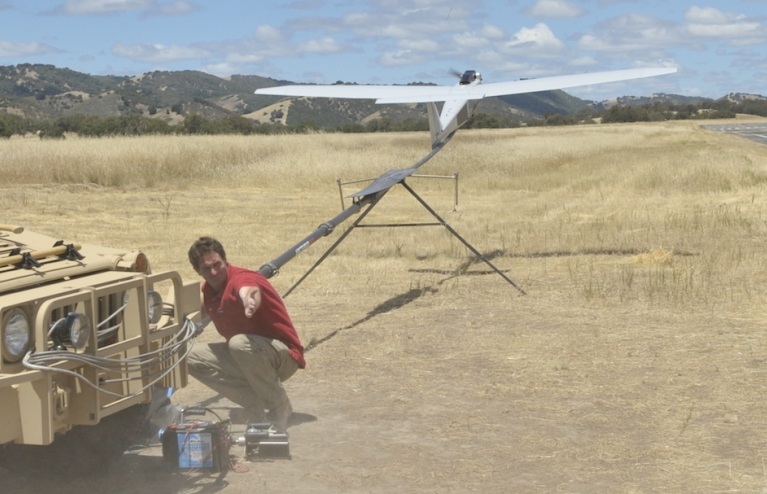

The Arcturus Portable Launching System (PLS) provides reliability, high mobility, and runway independence. The Arcturus PLS is a pneumatic catapult design capable of launching AS up to 200 lbs GVW.The system is lightweight, portable and simple to operate. The PLS operates on compressed air or any other inert gas. A trained operator can assemble the PLS in less than 10 min. The standard PLS is configured for the Arcturus T-20 UAV. Custom applications available.
SPECIFICATIONS
Type/design - Pneumatic Catapult
Launch Tube - Sectional anodized aluminum
Launch Rod - Multi sectional composite
Accumulator Tank - 20 gal AMSE rated steel
Propellant - Compressed air or nitogen
Mac Launch weight - 200 lbs GVW
System weight - 175 lbs assembled
Transit Cases - 79' x 20" x 16" and 59" x 24" x 28"
