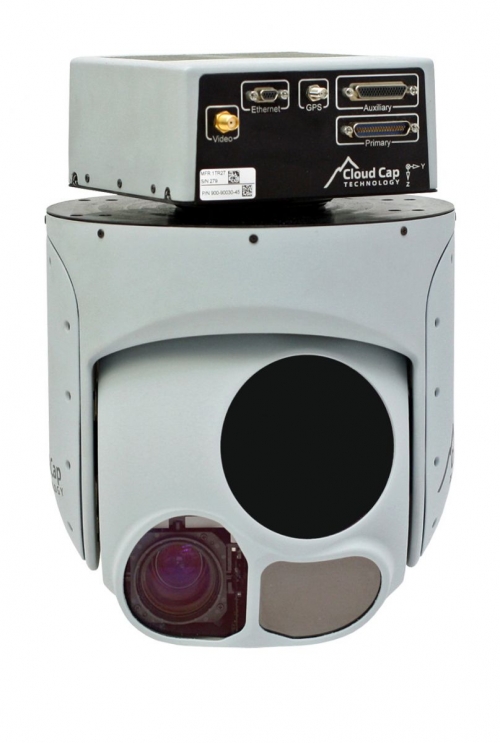

The TASE400 features a mid-wave infrared camera with continuous optical zoom down to 2° FOV, a daylight camera with continous optical zoom down to 1.94 FOV. A third payload bay is configurable to host a laser rangefinder and illuminator as well as a range of other options.
FEATURES
High performance and low SWaP at 7.5 lbs
Gimbal Stabilization: 2-axis, < 75 µRAD jitter
Flexible 3rd bay for additional payload options
Optional laser illuminator and laser range finder
onboard GPS/INS - no external IMU needed for geo-pointing
Fiber Optic Gyro (FOG) stabilization
onboard image processing capable of target tracking, scene steering and electronic image stabilization
MID WAVE IR CAMERA
10x optical zoom with continuous digital zoom up to 4x
MWIR: 3 to 5 μm
Resolution: 640 x 480
HFOV: 22° - 2.2° continuous
[NIIRS Indentify Manhole Cover] NIIRS 7.1
Identify manhole cover
DAYLIGHT CAMERA
31x continuous optical zoom
HFOV: 55.7°- 1.94°
Video Out: NTSC or PAL
[NIIRS Indentify Manhole Cover] NIIRS 7.1
Identify asphalt shingles on a residential roof
