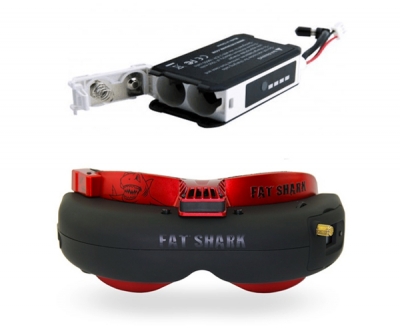

The Fatshark Attitude V4 with FSV1184 battery case is in US Warehouse now. It could only send to US-based Address.
Commemorate Fat Shark’s 10th year with the brand new AttitudeV4 Anniversary Edition headset, which combines a consumer-favorite 32°field of view (FOV), 4:3 VGA display and specialty pricing. This limited edition of red-trimmed goggles comes with a digital video recorder (DVR) and an included, 5.8G OLED receiver make to make the Attitude V4 a classic FPV headset. The included, simple-to-use receiver has one-touch band change capability, channel scanning and a spectrum analyzer for clean and simple channel selection.The Attitude V4 also brings back 9 degree, 3 axis headtracking (data cables sold separately).
Specifications of Attitude V4:
Optics:
FOV (field of view): 32°diagonal (Image size: 1.3m @ 2m)
Type: Plastic optic module
Interpupillary Distance (IPD): 59 to 69 mm (adjustable)
Optional Diopter Lens Inserts: -2, -4, -6 dpt
Display
Full color LCD polarized LED backlit
Binocular display (640 X 480 VGA)
NTCS/PAL auto selecting
Audio:
Stereo (Requires adjustable volume earphone)
User Controls:
Channel selection/ head tracker reset
Mode selection (wired/wireless)
Contrast/ brightness control
DVR control
HT control
Electrical:
Power supply: 7 - 13 V (2S/3S supply)
Power consumption: 400mA wireless
220mA direct mode (RX off) (@7.4V nominal)
Battery: 7.4V, 1000mAh Li-po battery with LED indicator
DVR: Analog Video Recording (no audio or HD recording)
MicroSD support to 32 GB
Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
File playback (native recording, no codec support)
Upgradeable via SD card
PAL/NTSC continuous scan auto detect/mode change
Auto save if power removed
RF Modules (Optional): multi channel and band support (modular RF)
Head Tracker: 9DOF 3-axis
Interface:
3.5mm AV in/out port
Power in port
3.5mm stereo earphone port
Mini DIN head tracker data port
Accessories:
5G8 32ch RaceBand RF module with OLED display
5G8 SpironET CP antenna
7.4V, 1000mAh Li-po battery with LED indicator
Battery discharge adapter
Mechanical:
Ergonomic molded headset w/ adjustable headband
Dimensions: 168 x 83 x 71mm
Weight: 193 g
Packing
(Size) 616g, 202 x 139 x 100mm
Please Note:
* Exposing the lens to direct light sources will result in LCD damage
* HDMI input and DVR audio are not supported
* Batteries should be removed and charged via a dedicated 18650 style charger.
* This is just a battery case for fatshark 18650 battery. Battery does not include.
For the battery holder, once the 18650 batteries are inserted will provide a 7.4V nominal voltage for use with existing Fat Shark goggles and fits into head strap like standard Fat Shark battery packs. Large capacity when used with high capacity cells (batteries not included).
Features:
Batteries should be removed and charged via a dedicated 18650 style charger.
Dimensions (estimation): 78x19x45mm.
Voltage: 7.4v
Specification of the Battery case:
Voltage: 7.4v
Capacity: Depending on LiIon battery used
Dimensions (estimation): 78x19x45mm
Weight (estimated): 60g
Package Included:
Brand new OLED 32 channel receiver module with improved signal sensitivity and stability
SpironET omni antenna
1000 mAh battery with LED indicator
Battery charge cable
Zipper carry case
FSV1814 18650 battery case
