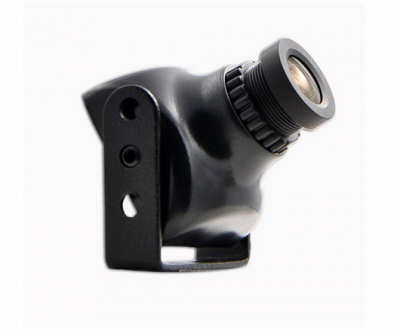

FOXEER XAT600M (nickname HS1177) is a classic FPV camera, it is one of the most popular mini camera all over the world.Foxeer HS1177 V2 has compact size, vivid color ultra-low latency, as well as excellent performance under complicated conditions（great changes in brightness） due to good WDR. This FPV camera greatly improve the playability of racing drone.
Main Features:
Creative FPV Solution
FOXEER the first to adopt 1/3" Sony Super HAD II CCD + Nextchip 2040 DSP on the motherboard which is less than one dollar coin, release the world's first practical mini FPV camera, the camera weighs only 12g, size is only 26x26mm.
Excellent Image
FOXEER HS1177 camera has outstanding image, vivid colors, delay is only 10ms. It react very fast between dark and bright environment due to excellent WDR. 0.01Lux low light make it work well in under low light environment
Wide Voltage
FOXEER HS1177 adopt imported high quality power IC, support 5-22V voltage, suitable for 2S-5S battery.
Rich Lens
FOXEER HS1177 camera can fits 1.8mm, 2.1mm，2.5mm, 2.8mm, 3.6mm lens
Specifications:
Type: XAT600M
CCD: 1/3" Sony SUPER HAD II CCD
Resolution: 650TVL(W/B),600TVL(Color)
System: PAL/NTSC
Pixel: PAL: 976(H) x 494(V);NTSC: 768(H)�494(V)
Synchronization: internal synchronize
Shutter Speed (CCD IRIS: PAL: 1/50~1/100000 sec;NTSC: 1/60~1/100000 sec
Audio: › 60（AGC OFF）
Video Out: 75ohm
Min. Illumination: 0.01Lux
Auto Gain: Off/ Low/ Mid/ High
Back Light Compensation (BLC): Off/ Back light compensation/ Strong light suppression
Private shading (PRIVACY): 1~8 private shading area
Motion Detection (MD): On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual/ Auto / Auto track
Mirror: Horizontal Mirror optional
Color to B&W: auto
DNR: 2DNR
WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): Chinese/English
White Dot Repair: support
Image Adjustment: support
Camera Title: support
Power Requirement: DC5V-22V
Working Temperature: -10℃-50℃
Working Humidity: 20-80%
Storage Temperature: -40℃-60℃
Current: 70mA
Package Included:
1 x Foxeer XAT600M HS1177 V2 2.8MM Mini FPV Camera
1 x Mounting Bracket
2 x Cables
