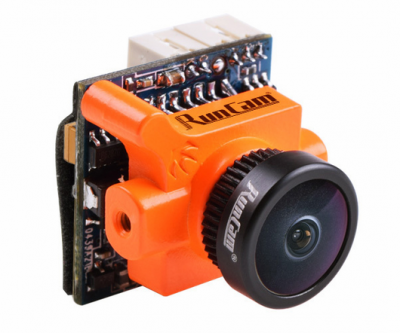

Runcam micro swift mini camera is the smallest and lightest CCD fpv camera in the world. The size is 19x19x19mm with the 2.1mm lens/FOV160 degree. The net weight of the camera is only 5.6g, it is perfect for all kinds of mini fpv racing drones.
Specifications:
Model: RunCam Micro Swift
Image Sensor: 1/3" SONY Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.1mm Lens(M8) / FOV160 degree
Signal System: PAL / NTSC (optional)
S/N Ratio: >60dB(AGC OFF)
Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color / Auto / B&W
Power: DC 5 to 36V
Net weight: 5.6g
Dimensions: 19mm * 19mm * 19mm
Package Included:
1 X Camera
1 X 1.25mm 3pin to 1.25mm 3pin FPV silicone cable
1 X 1.25mm 3pin to 1.0mm 3pin FPV silicone cable
