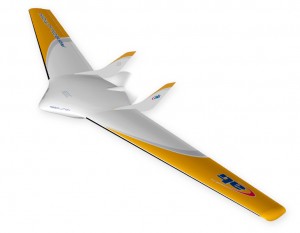

ATI’s Resolution UAS provides a cost-effective real-time imaging and data acquisition platform for research and surveillance applications. Designed with shipboard missions in mind, Resolution has been field-tested at sea on vessels ranging from 30 to 240 feet. It has been launched and recovered in the open ocean in winds exceeding 25 knots. Resolution is fully marinized, rugged and compact — its molded composite airframe easily disassembles into three pieces for storage or shipment in sturdy airline-approved cases. Equally effective for land-based operations, the Resolution system can be transported in a small SUV and is capable of operating from a wide variety of launch and landing sites.
Resolution’s IMU-based autopilot is state-of-the-art. The base station provides an interactive moving map (with optional aerial image overlays), a real-time glass cockpit display, 3D synthetic view of the flight, extensive data logging, and robust two-way communication with the UAS. Data is transmitted to the base station and displayed for real-time analysis of UAS status.
Gross Weight : 15 lbs
Useful Load: 8 lbs
Wingspan: 7 ft 10 in (2.4m)
Rate of Climb: 500 fpm
Cruise Speed: 30-50 kts
Survey Altitude: 500-1500 ft
Simple user interface and operation
Flight following software with operator-capable input
Launched by bungee or ATI catapult system
Marinized for saltwater operations
Sensor/Payload flexibility
Modular design
Molded composite construction
Quiet, eco-friendly electric motor
