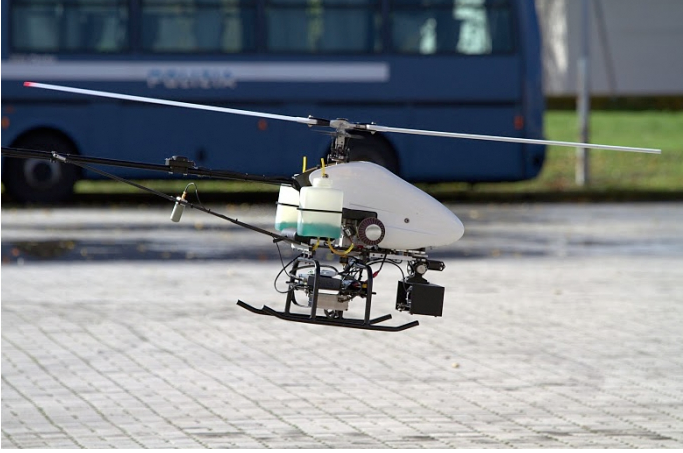

AT-30 – Lightweight, medium endurance VTOL UAV
Gasoline powered.
Fully autonomous flight with auto takeoff and landing.
Day video standard, other came- ras, video, and sensor packages optional.
Up to 2.5 hour flight time
1.5km standard telemetry range (long range optional).
Length: 1638 mm
Width: 355 mm
Height: 622 mm
Main rotor diameter: 1981 mm
Tail rotor diameter: 337 mm
Trasmission: Gears
Tail rotor: Shaft drive
Dry weight: 7 Kg
Engine: 2.4 HP 2 stroke gasoline
Energy Capacity: 1 Litre Standard/2.5 Litres Opt.
Climb rate: 122/m/min (AFCS Limited)
Maximum speed: 80 Km/h (AFCS Limited)
Endurance: Up to 2.5 Hours
Maximum payload: 5 Kg
Telemetry: 802.11 based, 800 m LOS
Safety Controller: 2.4 GHz, 800 m LOS, 4KM Max
Flight control software: Fully autonomous flight Auto takeoff and landing Unlimited waypoints with in flight retaking Failsafe “return to home” Long range telemetry* up to 30Km or through 3G network or satellite link
Standard telemetry: 1.5 Km. Optional telemetry: 3-30 Km. Applies to all models.
