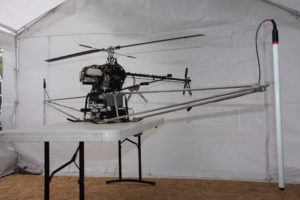

AT-35 – Lightweight, medium endurance VTOL UAV
Gasoline powered.
Fully autonomous flight with auto takeoff and landing.
Day video standard, other cameras, video, and sensor packages optional.
Up to 3 hour flight time
1.5 km standard telemetry range (long range optional).
Length: 1670 mm
Width: 510 mm
Height: 690 mm
Main rotor diameter: 2100 mm
Transmission: Gears
Tail rotor: Shaft drive
Dry weight: 9 Kg
Engine: 2.4 HP 2 stroke gasoline
Energy Capacity: 1 Litre Standard/3 Litres Opt.
Climb rate: 122/m/min (AFCS Limited)
Maximum speed: 55 kt (AFCS Limited)
Endurance: Up to 3 Hours
Maximum payload: 11 Kg
Telemetry: 802.11 based, 800 m LOS
Safety Controller: 2.4 GHz, 800 m LOS, 4 Km Max
Flight control software: Fully autonomous flight Auto takeoff and landing Unlimited waypoints with in flight retaking Failsafe “return to home” Long range telemetry* up to 30 Km or through 3G network or satellite link
*Standard telemetry: 1.5 Km. Optional telemetry: 3-30 Km. Applies to all models.
