Avidyne’s AXP322 Remote-Mount Mode S Transponder provides a reliable surveillance and 1090MHz ADS-B Out solution for general aviation aircraft with IFD540/440.
AXP322 Remote-Mount Mode S Transponder w/ADS-B OUT

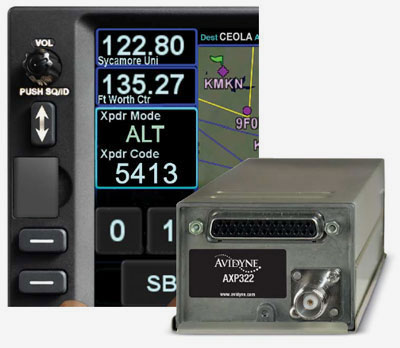

The AXP322 transponder is a remote-mounted Class 1 Mode S Level 2 Datalink Transponder, with support for 1090MHz Extended Squitter (ES), that meets all the current requirements for Mode S elementary surveillance transponders for both IFR and VFR flight. It is designed to be controlled using an Avidyne IFD540 or IFD440 GPS/NAV/COM.
Meeting the Mandate for ADS-B
The AXP322 also supports the latest Version 2 1090 MHz Automatic Dependent Surveillance Broadcast (ADS-B) Extended Squitter, known as “ADS-B out”. Equipping with ADS-B Out will be required in most U.S. airspace by 2020. The AXP322, when coupled with the Avidyne IFD540 or IFD440 transmits position information to appropriately-equipped ground stations and other aircraft. This provides improved airborne surveillance, provides vital information for airport ground surveillance, and is a key feature of future airspace plans in the U.S. and internationally.

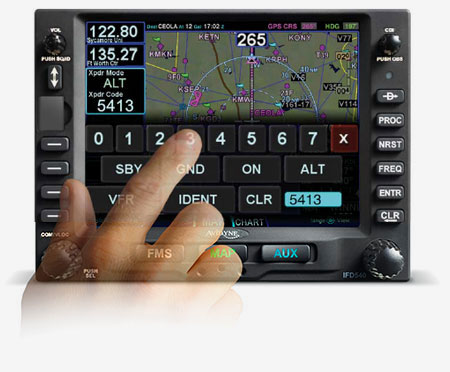

The pop-up keypad makes it easy for pilots to change modes, set squawk codes, and Ident the AXP322 using the touch screen on the IFD540 or IFD440.
Your 1090Mhz ADS-B Solution

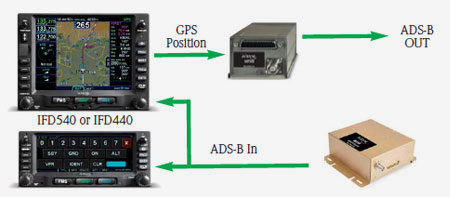

Coupled with Avidyne’s IFD540 or IFD440, the AXP322 provides full ADS-B surveillance capability to meet the upcoming mandates for flight above and below FL180 in the U.S. and internationally. The AXP322 transmits the required ADS-B Out signals including your aircraft’s GPS-derived position via 1090MHz, along with ground track, ground speed and altitude information. Add in Avidyne’s SkyTrax100 978MHz ADS-B Receiver and you will be able to receive FIS-B weather and ADS-B/ADS-R traffic for optimal situational awareness and safety.
Specifications
Dimensions
Width: 2.68" (68mm)
Height: 1.89" (48mm)
Depth: 6.3" (160mm)
Weight
0.97 lbs (0.35 kg)
Type
Transponder Class 1 Mode S level 2els ADS-B Class B1S
Certification
ETSO-C112b, ETSO-C166a, FAA TSO C112c, FAA TSO C166b, approved for IFR and VFR flight
Compliance
ED-73C, DO-160F, DO-178B Level B, DO-254 Level C, DO-260B, DO-181E
Power
9-33 V
Idle: 0.15 A active: 0.34 A
250 W at connector
Environmental
-40°C to +70°C
No external cooling fan required
GPS Compatibility
Avidyne IFD540/IFD440
Other Interfaces
Gray Code & Serial Altitude Inputs
Serial Altitude Output
External Standby Input
Weight on Wheels Input
External Ident Input
