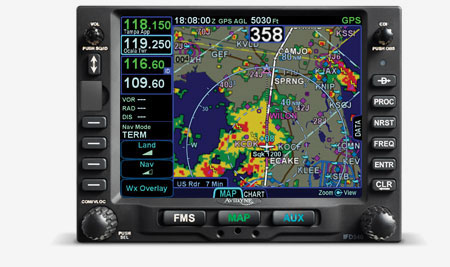

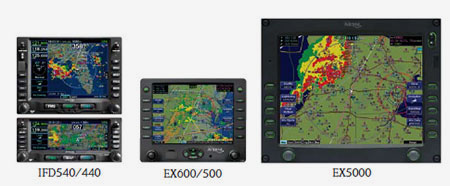

Avidyne’s ADS-B SkyTrax100 provides affordable ADS-B solutions for general aviation aircraft equipped with Avidyne IFD440/540 systems and EX-Series MFDs*.
978MHz ADS-B Solutions for Whatever You Fly
Using the 978MHz datalink frequency band, which is one of two channels available to pilots in the United States airspace for ADS-B, Avidyne’s SkyTrax100 Receiver provides Flight Information System-Broadcast (FIS-B) weather information, including NEXRAD radar, metaRs,TAFs, AIRMETs, SIGMETs, Special Use Airspace (SUA), and Temporary Flight Restrictions (TFRs). The SkyTrax100 will also receive traffic information* directly from nearby 978MHz-equipped aircraft, and indirectly through the rebroadcast of 1090MHz-equipped aircraft via 978MHz ADS-R. Traffic information from aircraft not participating in ADS-B is received from ground stations via 978MHz TIS-B transmissions (Traffic Information Service-Broadcast).
SkyTrax100 - ADS-B IN FIS-B Wx & Traffic
Receive only
For IFD540/440 customers with AXP340 Mode S Transponder (1090MHz ADS-B Out) > 18,000ft
Specifications
Dimensions
Width: 7.28" (185mm) - Including mounting bracket
Height: 2.04" (52mm)
Depth: 6.20" (158mm)
Weight
1.40 lbs (0.64 kg) - excluding cables
Type
978MHz TSO Rule Compliant ADS-B IN
Certification
TSO-C154c, RTCA/DO-282B, TSO-C145c
Power
Voltage: 9-33VDC
Input Current (8W nominal): 0.6A @ 14VDC, 0.41A @ 28VDC
Environmental
-20 to +55 C
GPS Compatibility
Avidyne IFD540/440
Aviation Format
specs subject to change without notice
*Depending on your display configuration. Contact Avidyne for more information, as the list of approved displays is currently being expanded via certification. ADS-B Traffic Displayed on the IFDX40 requires 10.1 Software.
** The MLB & MLX series have the ability to display ADS-B Wx on multiple displays
