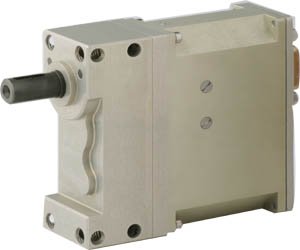

Bental Industries RSA-06 (Rotary Servo Actuator) was developed with tactical UAV manufacturers in mind.The RSA is a high performance low-weight compact servo actuator used for flap control and other UAV applications.The 28Vdc RSA-06 includes a permanent magnet brushless servomotor,reduction gear, feedback sensor on output shaft, electronic servo control and amplifier, all packed inside a low-weight compact anodized aluminum case. This unit is designed to meet aviation & MIL standards.
Performance
Specifications Unit Value
Nominal Operating Voltag Vdc 28
Operating Voltage
Vdc 18 ÷ 32
No load Speed
sec/°
250
Intermittent Stall Torque
Nm
12.0
ContinuosTorque
Nm
6.5
Nominal Continuou
A
0.5
Useful Angular Stroke
°(deg)
±45
Mechanical Limits
°(deg)
±49
Angular Backlash
°(deg)
Max 0.6
Bandwidth @ No-load
4º Amplitude Hz 15
6º Amplitude Hz 10
10º Amplitude Hz 6
Operating Temperature
C°
-40 ÷ +70
Storage Temperature
C°
-40 ÷ +85
Position Command
PWM/RS-485
Weight
g
415
Features
Low weight
High torque
Compact dimensions
Complies with MIL-STD-461E,704D,810E
Usefull life 2500 hr. (might vary depending on actual load duty cycle)
Current limit protection
Operating time counter
Boot loader
Options
Mechanical and Electrical Interface can be modified to meet specific customer requirements
