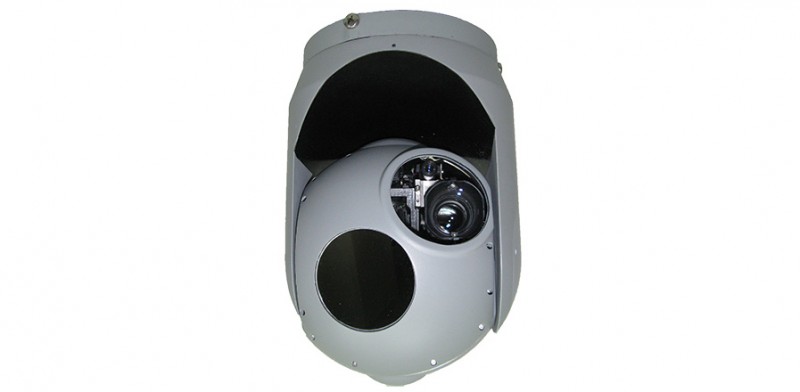

Triple Sensor Stabilized Miniature Payload
T-STAMP Triple Sensor Payload (Cooled Infrared IR x7 Continuous Optical Zoom or Uncooled Infrared IR x4 Continuous Optical Zoom and CCD x10 Continuous Optical Zoom)
The T-STAMP payload is a small, lightweight, electro-optical, gyro-stabilized, airborne payload which is designed to be carried by a UAV or aircraft, for tactical "Over-the-Hill" reconnaissance in daylight and / or at night. The STAMP payloads, provide UAVs and aircraft with the image quality of large UAV payloads all in one miniature camera system.
The STAMP payloads can operate in the following modes:
Observations Mode (Joystick Rate Mode).
Inertial Target Tracking Mode.
Hold Coordinate Mode (optional).
Point to Coordinate Mode (optional).
Scan / Mosaic Mode (optional).
MAIN FEATURES
Stabilized miniature payloads for surveillance and reconnaissance on a variety of small UAVs and small A/C.
Gyro stabilized image independent of platform maneuvers and vibrations.
Three (3) Gimbal System.
Very light weight and low power consumption.
High performance image resolution and quality.
Variety of day and night sensors.
Continuous Optical Zoom.
Graphics superimposed on video.
LOS data on video signal.
Mounting flexibility:
Horizontal- Nose Mount.
Vertical up or down; Belly Mount.
One LRU, One Plug.
Low cost.
Compatible for high landing G Shock.
Proven in battle.
OPTIONS
Slip Ring.
Integrated INS/GPS on Line of Sight for Point to Coordinate capability.
Payload Operating Unit (POU) also available, for evaluation and maintenance purposes.
VARIETY OF ConFIGURATIONS
T-STAMP Triple Sensor Payload (Cooled Infrared IR x7 Continuous Optical Zoom or Uncooled Infrared IR x4 Continuous Optical Zoom and CCD x10 Continuous Optical Zoom)
TR-STAMP Multi Sensor Payload (Cooled Infrared IR x7 Continuous Optical Zoom, CCD x10 Continuous Optical Zoom, Laser Rangefinder LRF, Optional Laser Pointer)
APPLICATIONS
Stabilized miniature payloads for surveillance and reconnaissance on a variety of Air Vehicles:
Small UAVs
VTOLs
UAVs
Small Manned Aircraft
Aerostats
Tactical Observation Balloons
