Compact Yacht IR Observation System

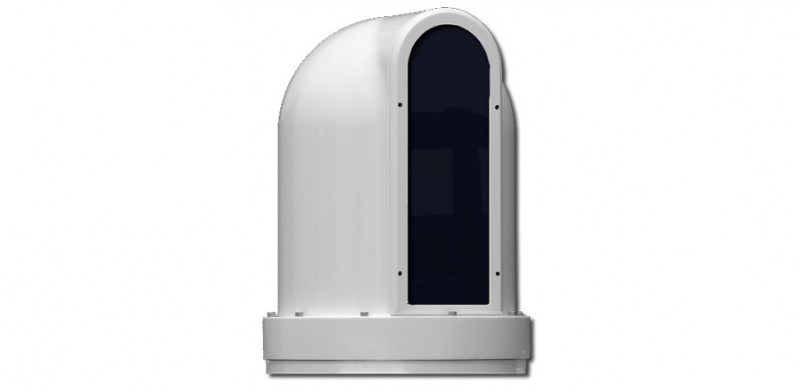

Y-VIEW Compact Yacht IR Observation System ((Uncooled IR Camera with x4 Continuous Zoom Lens or Day TV CCD Camera)
The Y-VIEW is a light weight, infrared, electro-optical, gyro-stabilized payload, installed on marine vessels (manned boats or unmanned surface vehicles) for night (or optionally day) observation and safety purposes.
The Y-VIEW incorporates an uncooled IR camera with a unique IR Continuous Zoom Lens. The Y-VIEW operates in Observation Mode, providing real time IR video.
The Y-VIEW’s light weight and compact structure enables easy integration with a variety of vehicles. It includes three gimbals and a specially coated Germanium window, for optimized performance in various environmental conditions on Patrol Boats, Ships and various maritime vessels.
Operation and control of the Y-VIEW by a PC (LT) or by a Portable Control and Display Unit or any other C2 systems.
Compatible with Panasonic’s switchbox and keyboard or Panasonic Video Encoder Windows Operating System.
MAIN FEATURES
• Remotely controlled Stabilized Pan and Tilt single camera system.
• Uncooled IR Camera with Continuous Zoom Lens or TV CCD Camera.
• Three (3) Gimbals Gyro-stabilized, for rough seas.
• Cost effective.
• Light weight.
• Easy to mount.
• Ruggedized for high shocks.
• Environmentally sealed (Nitrogen purged).
• 360° Observation.
• Ruggedized for high shocks.
APPLICATIONS
Safety - collision and object avoidance.
Detection of floating debris.
Aid to Mariner.
Navigation Aid.
Environmental Monitoring.
Vessel Security.
Search & Rescue.
