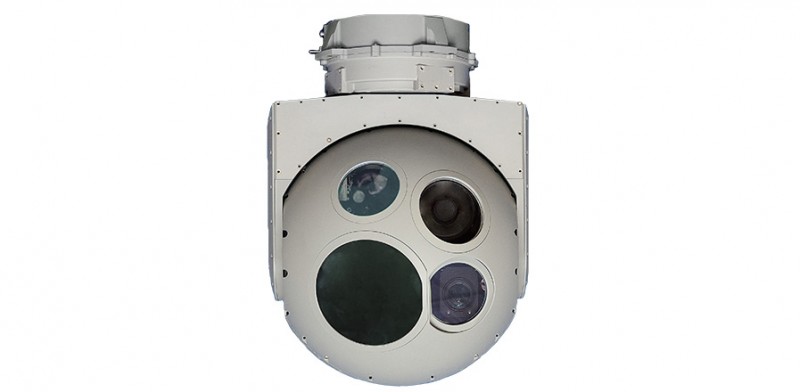

High Performance HD Surveillance Payload System
The DSP-HD is widely recongized by a multitude of worldwide customers, with varying applications, as their "HD Payload of Choice" for day and night airborne surveillance applications.
The DSP-HD provides the best value for a high performance high definition HD system combining multi mission capabilities in a single low weight HD payload.
The DSP-HD has superior capabilities and very long acquisition ranges making it ideal for a wide variety of applications and platforms.
The DSP-HD can be installed on UAVs, helicopters, fixed-wing aircraft, aerostats, surveillance vehicles, high masts and more.
MAIN FEATURES
Superior observation capabilities for very long acquisition ranges.
Sensors:
- Thermal Imaging (TI) with 720 mm focal length (Continuous Zoom x36).
- Full HD Zoom Camera.
- Full HD Daylight Spotter Channel.
- Eyesafe Laser Range Finder (optional).
- Laser Pointer (optional).
High performance for light weight:
- 29 kg for Turret.
- 35.4 cm Diameter.
Four (4) gimbal system fully gyro-stabilized in azimuth and in elevation for the entire Field of Regard including at the NADIR / ZENITH point.
Interface external devices such as moving map, C4I system, RADAR and navigation system using all standard communication channels.
Automatic Target Tracker.
Continuous Optical Zoom.
Image Enhancement (Built-in) and Local AGC capabilities.
Customized graphics superimposed on video.
Best value for high performance system.
APPLICATIONS
Border Patrol.
Coast Guard and Sea Patrol.
Police Multi Mission.
Search and Rescue (SAR).
Anti-terrorist Surveillance.
Anti-smuggling Surveillance.
Oil Spill Detection.
Oil Pipeline Patrol.
