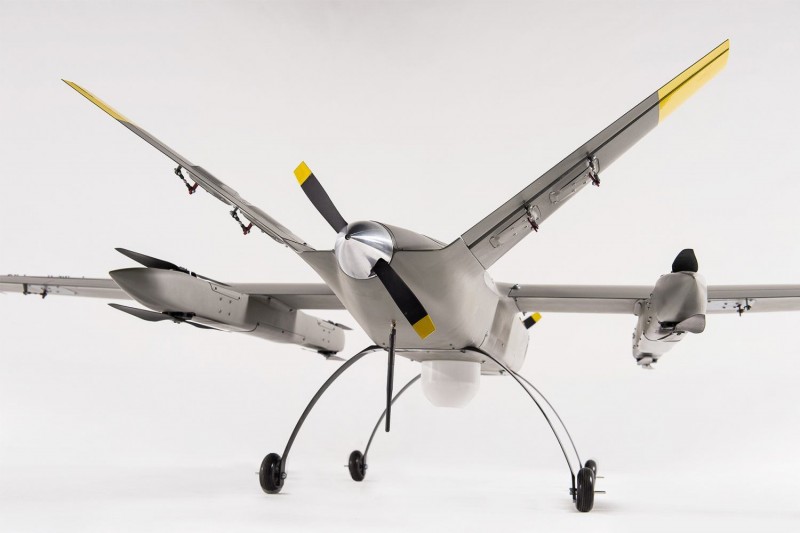

AV-2
20 Kg (No Redundancy), 25 Kg, 32 Kg Versions
The AV-2 Pelican has the following specifications and performance:
•Horizontal propulsion engines: 2 (one electrical and one 4-stroke or electrical)
•Vertical propulsion engines: 4 (electrical) •Length: 1.5 m (4.92 ft)
•Wingspan: 3 m (9.84 ft) •Max. takeoff weight: 25 kg (55 lbs)
•Empty weight: 18 kg (39.7 lbs)
•Fuel capacity: 5 kg (11 lbs)
•Endurance @ 2 kg (4.4 lbs) payload: 8 h
•Loiter speed: 131 kph (71 KIAS) •Maximum speed: 148 kph (80 KIAS)
•No export country limitations. No ITAR components
