AV-1

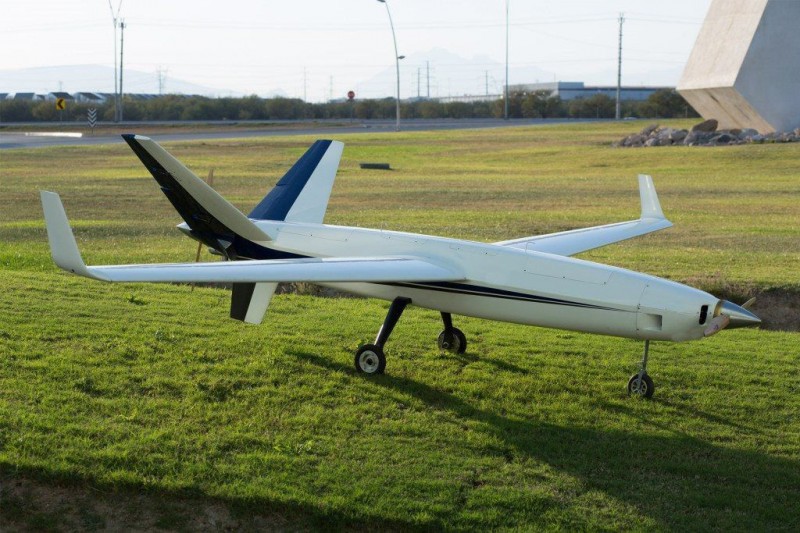

The AV-1 Albatross has the following specifications and performance:
•Two Engines •Optional VTOL •Length: 3 m (9.84 ft)
•Wingspan: 5.4 m (17.7 ft) •Max. takeoff weight: 110 kg (243 lb)
•Empty weight: 55 kg (121 lb) •Fuel capacity: 55 kg (121 lb)
•Max. Endurance @ 9 kg (19.9 lb) payload, with four stroke engines: 42 h
•Internal volume: 0.18 m3 (6.35 ft3 )
•Takeoff distance: (SL, ISA) 240 m (800 ft)
•Loiter speed: 111-126 kph (60-68 kias)
•Maximum speed: 185 kph (100 kias)
•Max. Service ceiling: +5,000 m (+16,000 ft)
•No export country limitations. No ITAR components
