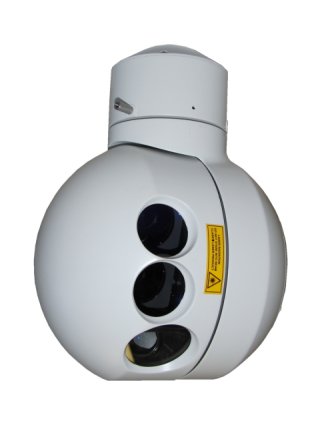

The OTUS-L205 gyro stabilised micro gimbal provides outstanding performance in one of the smallest form factors available.
The two axis gimbal reach a new level of stabilisation performance thanks to purpose-built high-bandwidth torque motors implementing active vibration attenuation. All electronics required for the advanced digital control fits within the unit shell. The user only have to connect an external power supply, a video monitor and a joystick, to have the system up and running.
A three dimensional micro-mechanical IMU and a laser range finder mounted directly on the optical bench, allows for advanced features like geo-location and geo-positioning, provided an external heading source is connected to the OTUS-L205.
The powerful digital servo controller of the OTUS-L205 is even capable of providing enough computational power to drive optional features like vehicle control and navigation.
Gimbal System Two axis gyro stabilised fully integrated direct drive gimbal
De-stabilisation Down to <100 µrad
Feedback Performance 0.036° ± 0.1° typical encoder resolution/accuracy, 200 Hz updat rate
Pan/Tilt Range Infinite range if payload does not require extending snout (sliprings in both axes)
Slew Rate Up to 180 °/sec maximum slew rate
Control Interface 1 x RS485 for user interaction and external heading/position source
Video Interface 1 x composite (PAL or NTSC) and / or 1 x component video (Full HD) or Ethernet
Power Requirements 18 - 36 Vdc, 20 W (typical), 40 W (peak)
Temperature 0 °C to +50 °C operational, -20 °C to 85 °C storage
option: -40 °C to +50°C operational
Dimensions 205 mm diameter x 275 mm height
Weight from 2.6 kg (depending on payload)
Options Laser range finders, laser pointers, illuminators, automatic video tracker, geo-location / geo-tracker
Accessories Hand Control Unit, cable kits, heli-mounts, retraction system, video recorder, video converters, etc.
