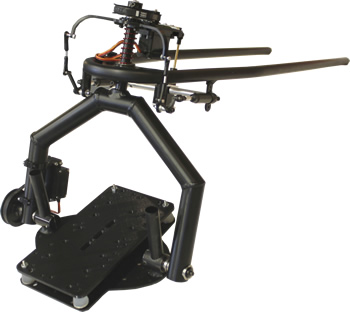

Non-stabilized manual pan/tilt control with R/C Ground Console Control System
- Optional stabilized pan/tilt through supporting autopilot interface to hold target position
- Vibration Isolated and damped camera mounting method
- Supports most commercial video and still compact cameras
- Servo-Actuated zoom and shutter available on Fat Head supported cameras (See FAT-C0104, FAT-C0105)
- Available anodized in a variety of colors
Performance Supports up to 2 lbs
Manual Pan/Tilt
Pan up to 180 Degrees, Tilt up/down 90 degrees, Manual Console programmed is included
Manual Control Frequency 2.4 GHz
Optional Electronic Stabilization Requires Autopilot license and separate controller
Interface Pan/Tilt Servo Power 5v NiMH Battery Included
Optional Electronic Stabilization 2x3-pin Connector to spare autopilot servos (pan/tilt)
Side Mounts to frame Specify frame Type, Helicopter Mount Hardware Included
Mechanical Envelope LxWxH 700300x285mm
Weight 3 lbs (w/o camera)
