Product Description

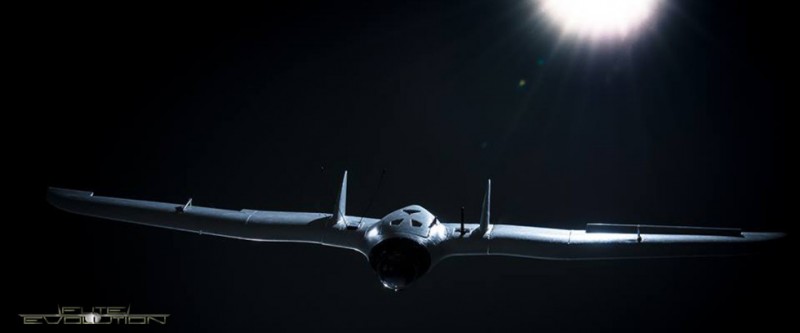

This wing platform was designed by FPV enthusiasts for the FPV enthusiast and has a wingspan of 1950mm. The RVJET is a super steady and simply laid out wing with a very nicely appointed front facing Pan and Tilt gimbal (including servos) which is perfect for HD videos, video surveillance, and or detailed flight visuals. The Pan and Tilt mechanism gives you almost 180 degrees of up/down and left/right Pan Tilt travel. A GoPro 2/3/3+ or Flight Camera can be mounted to the Pan Tilt for a variety of FPV options.
The RVJET has two different wing sets to choice from with the kit. The short wings allow for fast proximity and acrobatic flight were the long wings (with extensions) provide for more efficient longer flights with better stability and payload capacity. It’s large fuselage has plenty of room for all your equipment and batteries. Made of durable EPO foam and available in Black or White.
This platform can be deployed in minutes once at your flight site and is easy to break down and travel with. The box it comes in works as a travel case which holds the plane and extra parts.
We make a few improvements to the RVJet by using a more robust ESC and reinforced linkages and control surfaces.
All kits and the Basic Kit include the following: $1,570.00
Uthere Ruby Autopilot with GPS, airmag sensor, expander and micro SD card for flight logging
3550 1200kv or 2820 920kv motor-depending on battery cell count used
Castle Creations programmable Ice 75amp ESC with data logger
Castle Creations 10amp BEC
metal geared aileron servos and servo extensions
Short and Extended wing option
Reinforced control hinges and 5mil laminated elevons
Landing skid and motor mount
metal pushrods and linkages
APC propeller
XT60 connectors
3s or 4s Lipo compatibility
RVJet Pan and Tilt gimbal and servos
GoPro 1,2 and 3 holder
Mini camera holder
Three clear domes
FPV Kit includes: $2,390.00
Ruby “On Screen Display” board and FPV overlay with direct FPV equipment connections
TBS59 FPV flight camera
400mW video transmitter and cloverleaf antenna
US made heavy-duty 12v voltage regulator and filter
FPV RTF Kit includes: $2,822.00
FrSky Taranis Transmitter with upgraded 3s Lipo battery
EzUHF Long Range Transmitter and 12 Channel Diversity Receiver
Batteries are sold separately for all kits. We suggest a 4,000-8,000mah battery range for this platform.
