Type: boxer engine
Cylinder: 4
Displacement: 1042 cm³
Max. performance: 75 kW (102 HP)
Max. torque: 116 Nm
Cooling: fan cooling
Weight: 42 kg
Starting device: electric starter included
Options: dual ignition, multi point injection instead of carburetter, gear box G40 with or without centrifugal clutch

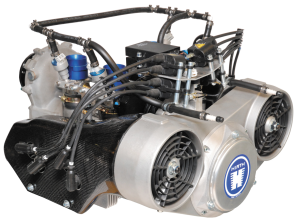

The new 3003 is the successor of the F30 ES/U. In comparison with its predecessor there are lots of innovations and improvements.
Thereby is this a modern engine for Ultralight uses, unrivalled in view of performance weight, vibration, robustness, independence of position and less maintenance.
Optimized combustion chambers, an extremely solid crank shaft, lightened inertia weights and an easy starting operation also at lower temperatures belong to the improvements.
A long time reliable and optimized concept with a unique price-performance ratio in this classification.
Available is the 3003 with diaphragm carburettors or electronic injection system.
A performance of 102 HP at 6500 rpm and a torque of 116 Nm at 5500 rpm ensure push abundant. All that at a base weight of only 42 kg.
A service life of 1000 hours (at 75% power), Nikasil-coated Aluminium cylinders, a digital mapped ignition system and 3 years warranty for the crank shaft are convincing facts.
