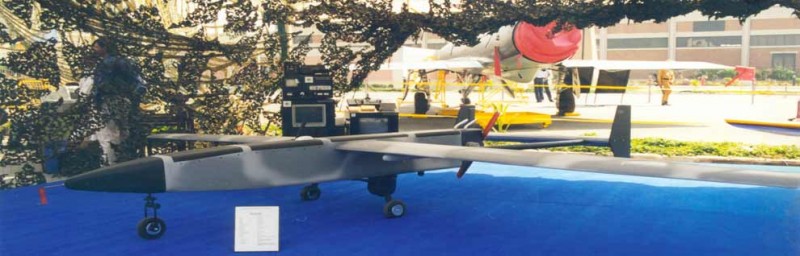

VECTOR
The VECTOR UAV system caters to the medium-sized UAV/RPV market. The VECTOR system offers modularity, ruggedness and accessibility that is second to none in field operations. With payload capabilities in the 40 kg range, and a nominal price tag, the competitive edge is obvious. The VECTOR airframes use bullet-proof Kevlar molded fuselage pans, Kevlar/Graphite reinforced equipment bays and side stress panels and high-tensile steel aramid-reinforced landing gears. A variety of payloads can be supported with the available onboard power supplies and the GSP-900 is a great starting option.
The VECTOR UAV systems were specially developed to cover a customer requirement for a family of modular composite airframes that could provide tactical surveillance capabilities in the 160-200 km range. The airframes use a specially modified wing shape and airfol to provide more efficient flight, longer endurance and superior altitude ceilings. based on a classical twin-boom pusher layout, the aircraft can be equipped with a variety of stock or modified power plants, including tuned-exhaust and belt-driven modifications. All models support real-time video and data modules and flight avionics for at least 200 km LOS range applications.
A complete system consists of 4 UAV's ; a GCS-2000 Ground Control Station; the ATPS-2000 Antenna Tracking & Positioning System; programming and moving map mission display software; Spares and the GSE-2000 Ground Support Equipment subsystem.
