Description
Transport vehicle for ground support (TVGS) «INDELA-SC» is intended for transportation of two helicopter UAV to the place of their operation and storage.

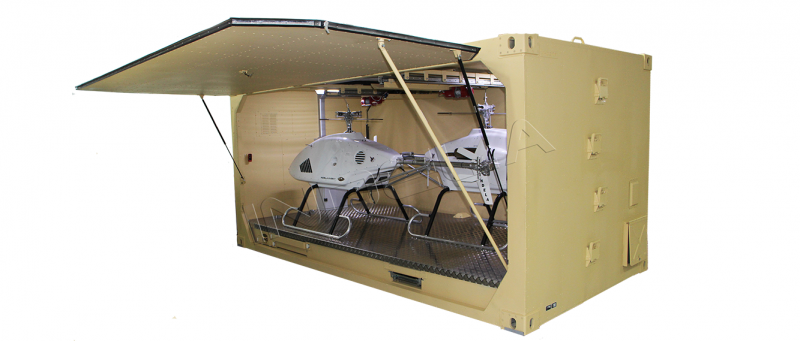

«INDELA-SC» represents the purpose-designed transportation house-type body with two rising side split-design panels, front and rear walls, raised floor and ceiling panel. The house-type body contains the internal compartment wher 2 UAV are installed and moored.
The house-type body is equipped with two winches for the UAV unloading and loading, filling station for the UAV refuelling. The compartment is equipped with lightening, earthing, fire-extinguishing means, charging device, accumulator battery, and in the raised floor there are recesses for main rotor blades and SPTA set.
Characteristics
Amount of the arranged UAV pcs. 2
TVGS installation time min 10
Recesses for blades storage pcs. 2
Additional boxes pcs. 2
UAV unloading mechanisms pcs. 2
Fire extinguisher pcs. 2
Charging device and accumulator battery for the winch power supply pcs. 1
Tank for fuel l 200
Dimension of the transport container (house-type body) sm 228x225x430
Weight of the empty transport container kg 1800
Operating temperature °С -40 +65
