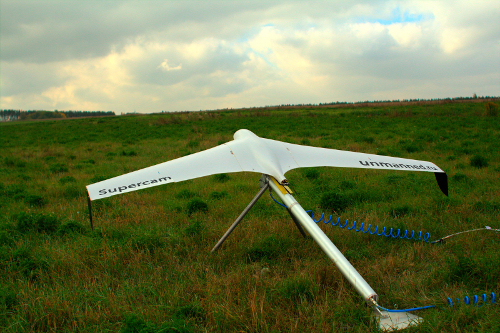

Advanced Supercam S300M (Burevestnik) UAV is intended for video monitoring both during day and night-time with online video transmission to the distance up to 50 km and 90 km radio channel range of coverage.
Tactical multipurpose Supercam S300M UAV has best-in-class specifications – flight time up to 3.5 h and capability of simultaneous installation of three payloads, one of which is on the electromagnetic 3-axis gyro-stabilized platform with a view of entire lower semi-sphere, and two others – on the fixed platforms. Possible cameras: HD/PAL video camera, thermal imaging camera integrated with video camera with 720576 resolution, Over High Sense video camera, photo camera with 24 MP or 36 MP resolution, radiation dosimeter, multispectral camera. Optionally, laser target highlighting can be installed.
Automatic wings detachment system allows independent center section detachment in case of hard landing, thus reducing the impact energy and protecting the aircraft from damage. Also, this system facilitates transportation downsizing the case.
Optionally installed video tracker allows Supercam S300M UAV to automatically monitor stationary and moving objects. System of automatic return in case of communication loss allows UAV to return to the start point.
Supercam S300M Technical Specifications:
Flight time – 3.5 h (4.5 h optionally);
Flight speed – 65 ÷ 120 km/h;
Radio channel range of coverage – up to 90 km;
Maximal flight distance – 220 km (300 km optionally);
Video transmitting channel range of coverage – 50 km;
Takeoff weight – 9.5 ÷ 10.5 kg;
UAV wingspan – 3 m;
Operational height – 50 ÷ 5,000 m;
Operational ceiling – 6,000 m;
Deployment time – 15 min.;
Operating conditions
wind up to 15 m/s,
temperature range –40°С to +40°С,
moderate rain or snow;
Launch – elastic catapult;
Recovery – with a parachute in automatic or semiautomatic mode;
Takeoff and landing area – 100 х 100 m;
Flight operation mode - automatic or semiautomatic.
