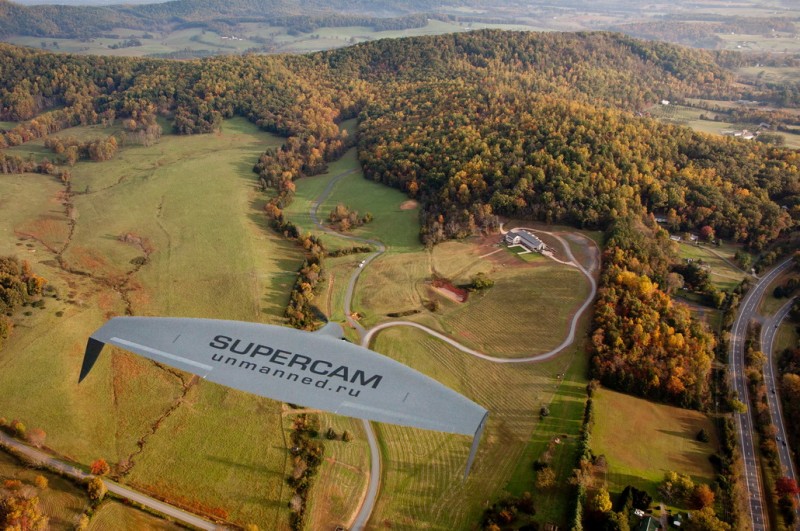

UAV Pioneer is designed for wide-range surveillance of weather conditions of underlying surface (including complicated land relief and water’s surface), search and acquisition of objects. It provides data obtaining, transmission, and recording in real time and scale and specifies location of the objects under surveillance. Distinctive feature is small size.
Pioneer technical specifications:
Flight duration – 120 min;
Velocity range – 60 ÷ 125 km/h;
Radio channel distance – 15 - 100 km (depending on the type of radio channel);
Maximum flying distance – min 120 km;
UAV weight – 2,5 kg;
Wingspan – 1 m;
Operational height – 50 ÷ 500 m;
Flight ceiling – min 3600 m;
Deployment time – 10 min.;
Positioning – GPS/Glonass;
Operating conditions
wind velocity up to 15 m/s,
operating temperature range –30°С to +30°С,
moderate rain or snow;
Launching – elastic catapult;
Landing – with a parachute in automatic or semiautomatic mode;
Ground for takeoff and landing – 50 х 50 m;
Flight operation mode - automatic or semiautomatic;
