American Legend Aircraft Company

Super Legend HP with Titan Engine

The powerful Super Legend HP from American Legend Aircraft Company is a remarkably high performing aircraft. Best in class, it was designed for the ultimate in utility by incorporating the latest in technological developments. While derived from a long line of aircraft, the Super Legend HP takes versatility to a new level, all the while remaining a Cub at heart.

The Super Legend HP gains its remarkable power from its Titan O-340 engine*—a stroked derivative of the Lycoming O-320. The Titan is a 4-Cylinder, 340 cu in displacement engine capable of outputting over 180 hp, similar to the larger and weightier O-360. The Super Legend HP, with the Titan O-340, offers fast cruise speeds and the best ever takeoff and climb performance in a light-sport** Cub.

Additional features and available options include:

Same Proven Airfoil and 35’ 6” Wing Span as Piper Super Cub

3-Inch Wider Cabin Than Piper Super Cub

Classic PA-18 Pressure Cowling of Super Strong, Lightweight Carbon Fiber

Carbon Fiber Doors, Floorboards, Interior and Baggage Panels, Spinner, Wingtip Bows

CNC Cut Tubing and TIG Welded Fuselage

Lightweight Paint Scheme with Custom Options

180-hp (at 2,150 RPM) Titan O-340 Engine, 9.0:1 compression ratio

Full Electrical System with Starter and Alternator

Extended Span Flap System

Aerodynamically Balanced Tail Surfaces

32-Gallon Fuel System with Right/Left/Both/Off Selector

Dual Doors and Windows Fully Operable In Flight

Dual Controls with Front Seat Solo Pilot Position

Instrument Panel Options include VFR, Night VFR, SmartCub Glass Panel, Autopilot, and More

Instrument Panel Tilted Forward Adding Extra Room

Ergonomic Body Conforming Adjustable Front Seat

Heel-operated Brakes with Parking Brake System, Optional Toe Brakes

Complete Aircraft Tested to ASTM F2245 Standards at 1750 lbs. Gross Weight

Sport Pilot Certified to 1320 lbs. Gross Weight S-LSA

Also Available as a kit-built aircraft

* Titan Engines is part of Continental Motors Group.

** To qualify as light-sport (S-LSA), the Super Legend HP has a maximum takeoff power limitation of five (5) minutes and a continuous cruise operations de-rating to 80 hp. Special lightweight custom paint and avionics packages are available to maintain Super Legend HP weight under S-LSA certification rules of 904 lbs.

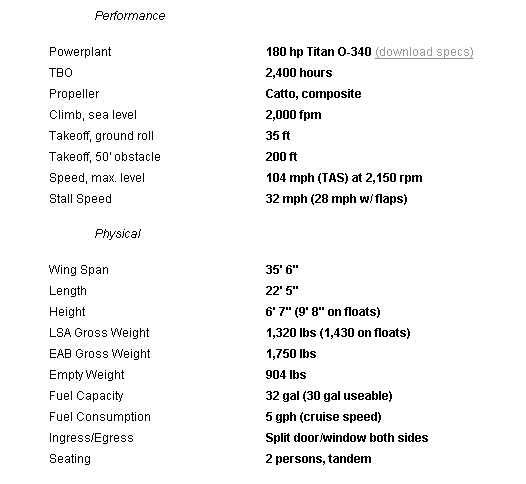

SUPER LEGEND HP SPECIFICATIONS
