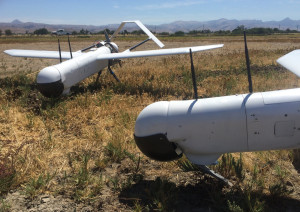

Big Capabilities In A Small UAV
The improved Super Bat now features increased fuel capacity, an on-board generator for 10 hour flight duration, and a more powerful catapult launcher. Improved landing gear means greater shock absorption for rougher fields.
Performance Characteristics
Endurance 10 Hours + Reserve
Operational Ceiling 15,000 ft
Speed Range 40 to 70 kts
Telemetry Range 6-10 Mile Radius*
Fuel Range 450 miles
* Optional Long Range Data links Available
Additional Features
Fully autonomous flight capability including launch and landing.
< 15 minutes setup time
On board electrical power generation
Launch from catapult (elastic cord powered) and fully autonomous skid landing
Delivers high quality video imagery using a stabilized gimbal sensor (TASE 150 or TASE 200)
Track and follow targets, 30:1 zoom capability, IR camera optional
Includes 20MP wing mounted mapping camera with automatic camera triggering
Compact, modular design small enough to fit in an SUV
Optional data processing software for aerial mapping applications
Applications
Aerial Mapping
Small Unit Surveillance
Urban Monitoring
Force Protection
Agriculture & Wildlife Monitoring
