A SMARTER WAY TO SEE

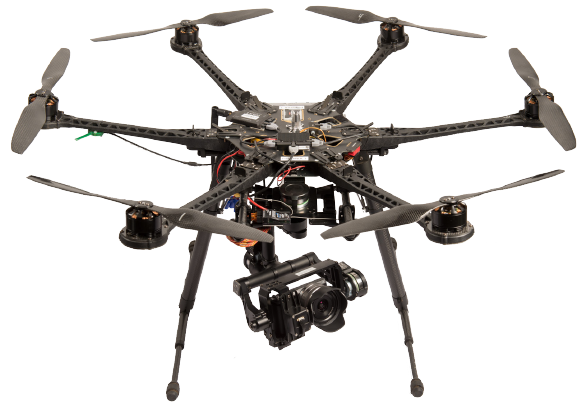

The Hex is a fast-deployable, multi-rotor unmanned aircraft system capable of fully autonomous operation. Hex can be launched in under ten minutes to provide immediate, critical information in any situation. It is constructed of sturdy materials, and has multiple interchangeable payload options. These capabilities make the Hex a reliable, cost-effective solution to meet a variety of aerial imagery needs.
KEY FEATURES
Single-person portable and operable
Quick assembly
Vertical takeoff and landing
Six stabilizing propellers
Gyro-stabilized payload mount
Reconfigurable arms and skid for easy transportation
PUBLIC SAFETY APPLICATIONS
Emergency management
Drug interdiction
Search and rescue
Disaster damage assessment
Critical incident monitoring
Wildfire operations
Fire monitoring
Hazmat monitoring
Hostage standoff
COMMERCIAL APPLICATIONS
Aerial imagery
Mapping
Precision agriculture
Mining
Oil and pipeline inspection
Land management
SPECIFICATIONS
Takeoff weight: 14 lb (6 kg)
Diameter: 31 in (800 mm) without props
Height: 20-22 in (depending on configuration)
Typical operating speed: 12 kts (14mph)
Endurance: 20 min
Video range: 1 km
Comms range: 2 km+
Typical operating altitude: 100-300 ft AGL
Video frequency: 5.8 GHz
TYPICAL SYSTEM COMPonENTS
One (1) Hex aircraft with batteries
One (1) EO camera payload
One (1) Gimbal mount
One (1) Ground control station with battery
One (1) Non-rugged touchscreen laptop
One (1) Video receiving station with battery
One (1) Futaba controller
One (1) Battery charging station
One (1) Field repair Kit
One (1) Rugged shipping Case
OPTIonAL SYSTEM COMPonENTS
Additional batteries for continuous operation
Additional video receiving station
IR camera payload
Mapping software
Rugged touchscreen laptop
Other customizable options available
TRAINING
Basic and Advanced courses are available for Hex operation and training. A certified operator is required to operate the system.
