RCV Engines

The RCV - rotary cylinder valve four stroke engine represents a major advance in model engine design. Although its moving components (piston, crank, cylinder and rotary valve) are totally conventional, they are arranged in a radically novel configuration to provide the aero modeller with several key benefits, whilst havin similar handling characteristics to other 4-stroke model engines:-

The engine still uses RCV's unique rotary valve system - which has only one extra moving component to a 2-stroke and so is easy to maintain. This ultra-compact engine is even shorter than conventional .90 4-stroke engines, so once again cowling will be much easier than other 4-strokes.

The engine still uses RCV's unique rotary valve system - which has only one extra moving component to a 2-stroke and so is easy to maintain. This ultra-compact engine is the same height as a conventional .52 4-stroke engines (or .60 2-strokes) which makes cowling much easier than other 4-strokes

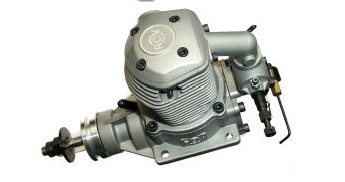

So if you are looking for a reliable, easy to use 4-stroke engine, that is easy to cowl and sounds like the 'real thing' then the RCV130-CD engine is a perfect option to power your 90 - 120 size model.

At the top end of the rotating cylinder there is a single port leading to the combustion chamber. This is surrounded by a fixed timing ring with three radially arranged ports; inlet, ignition and exhaust. This simple valve arrangement serves the combustion chamber as the engine cycles through the conventional 4-cycles: induction, compression, power and exhaust. Ignition is achieved through a standard 4-cycle glow plug exposed once only during each complete cycle. The rotating cylinder is effectively combined with the rotary valve in a single component hence - RCV - Rotating Cylinder Valve.

westonuk002063.jpg westonuk002062.jpg westonuk002061.jpg westonuk002060.jpg westonuk002059.jpg westonuk002058.jpg westonuk002057.jpg

QUICK GUIDE

FUEL

RCV ENGINES

E.D ENGINES

WEBRA ENGINES

A.P ENGINES

MAGNUM ENGINES

WEST ENGINES

TUNED WEST 4 STROKES

FIRE EATERS

FUEL REGULATORS

E.D ENGINES

GLOW PLUGS

Search

Web Easy

ENGINE ACCESSORIES

WEST RECEIVERS

WEBRA ELECTRonICS

WEST ELECTRonICS

JACKPOWER LIPOS

BATTERY PACKS

CHARGERS

RUNTRonIC IGNITION

ARTF AEROPLANES

COMPASS HELICOPTERS

HELI BLADES

GENERAL ACCESSORIES

CARBON ACCESSORIES

PROPELLERS

GLUE

GENESIS EXHAUSTS

Terms & conditions westonuk2050012.jpg westonuk2050011.jpg westonuk2050010.jpg westonuk2050009.jpg The RCV - rotary cylinder valve four stroke engine represents a major advance in model engine design. Although its moving components (piston, crank, cylinder and rotary valve) are totally conventional, they are arranged in a radically novel configuration to provide the aero modeller with several key benefits, whilst havin similar handling characteristics to other 4-stroke model engines:- The RCV 4-cycle engine has only one more moving component than a 2-cycle engine -the rotating cylinder itself. The cylinder is suspended between two bearings which allow it to rotate freely around the piston; the piston, and crank are entirely conventional. A gear formed around the base of the cylinder meshes with a gear on the crank. As the piston reciprocates and the crank turns, the cylinder rotates around the piston. At the top end of the rotating cylinder there is a single port leading to the combustion chamber. This is surrounded by a fixed timing ring with three radially arranged ports; inlet, ignition and exhaust. This simple valve arrangement serves the combustion chamber as the engine cycles through the conventional 4-cycles: induction, compression, power and exhaust. Ignition is achieved through a standard 4-cycle glow plug exposed once only during each complete cycle. The rotating cylinder is effectively combined with the rotary valve in a single component hence - RCV - Rotating Cylinder Valve. The engine still uses RCV's unique rotary valve system - which has only one extra moving component to a 2-stroke and so is easy to maintain. This ultra-compact engine is the same height as a conventional .52 4-stroke engines (or .60 2-strokes) which makes cowling much easier than other 4-strokes Retail Price: £254.34 The engine still uses RCV's unique rotary valve system - which has only one extra moving component to a 2-stroke and so is easy to maintain. This ultra-compact engine is even shorter than conventional .90 4-stroke engines, so once again cowling will be much easier than other 4-strokes. So if you are looking for a reliable, easy to use 4-stroke engine, that is easy to cowl and sounds like the 'real thing' then the RCV130-CD engine is a perfect option to power your 90 - 120 size model.

Imperial Metric Manufacture Die Cast

Engine Type 4-stroke - Glow ignition

Displacement 1.3 cu inch 21.3 cc

Max Power (approx.) 2 bhp 1.5 kw Weight (exc. silencer) 35 oz 995 g Length 5.35 inch 136 mm

Height - centre line axis 3.7 inch 95 mm CowlingRadius

Propeller shaft diameter 5/16" UNF Practical RPM range @ prop 2,400 - 10,000 rpm Example prop sizes (2-blade) 15x8
