Dimensions and Performance
Wing Span ............................................................................4.1 Meters
Length.................................................................................. 2.9 Meters
Empty weight dry .........................................................................13 Kg
Fuel capacity (standard)............................................................7.5 litres
Design Max Payload …………………………………………............……6kg.
Max take-off weight .......................................................................25kg.

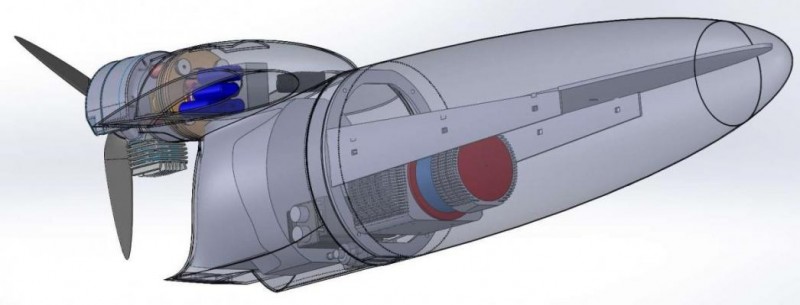

Nose-cone volume ............................................................35,000 cu/cm
Endurance
The 7.5 litre fuselage fuel tank will deliver up to 12 hours depending upon a range
of factors such as the aircraft AUW, motor type and size, throttle setting etc. Silvertone® will
work closely with the customer in order to deliver the aircraft and motor combination best
suited to mission requirements.
Speed
Vne......... ...................................................120mph -.190kph - 107 kts
Cruising speed .................................................69mph - 115kph - 62kts
Stall speed- no flap - 20kg ........................36mph approx - 58kph - 32kts
Stall speed- Flaps - 20kg - ........................28mph approx -.45kph - 25kts
Stall speed- Flaps - 10kg - ........................20mph approx -.32kph - 18kts
