Function:

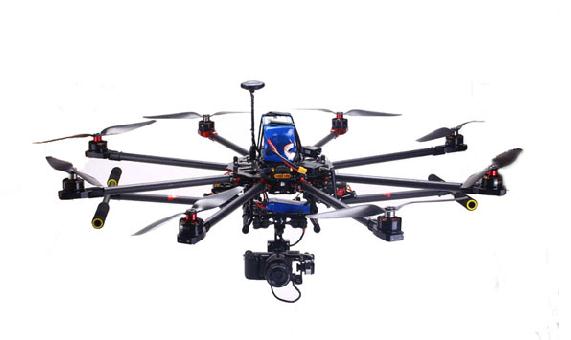

Skyhawkrc f900 octocopter is professional aircraft. it is easy to carry. esay to use. simple to use and Stability and ready-to-fly.no need any installation and calibrate. it is include manual mode. GPS fixed point mode. car returns home mode. it can control two brushless 3-axis gimbal and brushless PTO shaft.
Also you can updat connect fpv video transmission and data transmission
Mode of operation: autostability manual. car in the balance. car back home. Auto-back landing, self-navigation.
Security guard: "fail safe" landing pads, "black box"
Status display: LED
Control mode: radio / mobile control large station / pc large station
Configuration: Software for PC / mobile software
Receiver: normal handset rest. Receiver s-bus
E ''''comes with electronic retractable landing gear. Aluminum Case Box
Specification:
No. type specification no. unit
1 main frame composite engineer plastic +3 K carbon fiber 1 set
2 Arm tube 3k oblique carbon fiber +composite engineer plastic 18*360mm 8 pcs
3 Landing gear mechanics structure multifunctional.full electronic retractable landing gear.3K Oblique carbon fiber/composite engineer plastic 18*265mm/14*400mm 1 set
4 motor C3510 KV580 High efficiency disc brushless motor 8 pcs
5 propeller 1355 high efficiency carbon fiber propeller 3 pair
6 Gimbal(option) 3 axis brushless gimbal(it is compatible with DSRL camera.such as Sony 5R.5N.Canon GH2.GH3) 1 set
7 brushless ESC 4-6S 30A high speed safety reliable 8 pcs
8 controller system YS-X4 V2 1 set
Technical data:
Max folded size 1260*1260*536 mm
Outer package size 830*370*340(with aluminum case and pearl protect foam) mm
motor shaft 920(motor to motor distance) mm
propeller 1355 carbon fiber propeller 13in
battery 6S 15000mAH Standard comfirgutation 1PC
frame weight without battery.receiver 3345g
takeoff weight 6S 15000mAH Battery.receiver(1730g) 5057g
Max safety takeoff weight 1 PC standard battery 6800g
Effective payload 3 axis DSRL camera.small light weight DSRL camera <=1700g
Max effective payload 1 PC standard battery
<=1700g
flight distance visual(limited by remote controller) about 1000m
flight time 1 6S 15000mAH 1PC battery.receiver about 27mins
flight time 2 6S 15000mAH 1PC battery.receiver.3 axis DSRL camera.Sony 5R.Gimbal power supply battery 3S 2200mAH Lipo about 20mins
wind resistance <=5 class 4 class is ok
