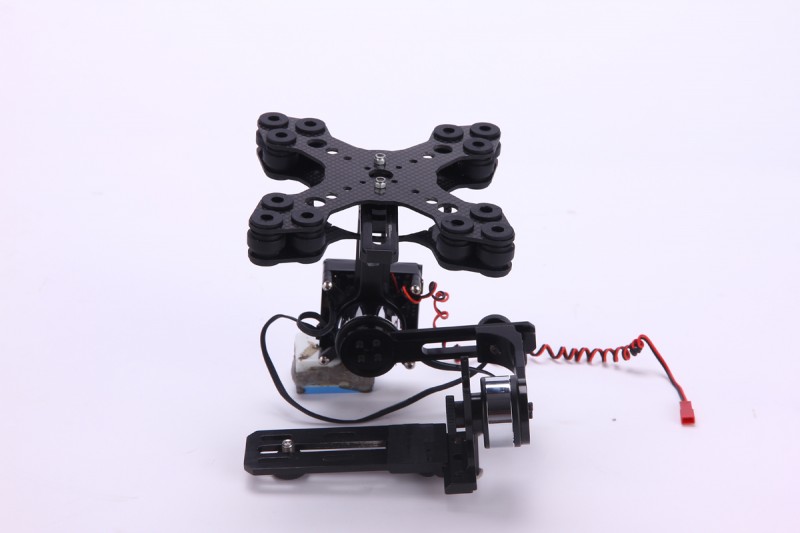

SkyhawkRC 3 Axis Brushless gimbal
Structure features:
1. Aluminum alloy material, half side signal frame, light and firm
2. Brushless motor direct drive.
3. Adjust center of gravity of camera, for different shot.
4. Active self stabilization, a closed loop test, stabilization more precisely
1. Support sensitivity parameter adjust and software 3D pose display.
2. Support stick speed mode and position mode
3. Support receiver: common receiver, PPM Receiver, DSM2/DSMJ/DSMX receiver.
4. Support radio:PPM/PCM/2.4Ghz
5. Working voltage: DC 7.4V-14.8V(suggest 11.1V.3S)
6. Working current: 200Ma-2A (It is depends on voltage and motor rate)
7. Working temperature:-15—65
8. CPU:MEGA328P
9. Sensor:MPU6050 Three axis servo, accelerometer
10. Max angel speed:2000/SEC
11. Max speed:16g
12. Control HZ:1600Hz
13. Motor drive rate:8/32Khz
14. Control precision:0.1
15. Control angel range:0-360
16. Control angel range:-35-35(roll); -90-90(pitch); 0-360(yaw).
17. Software: Russia Alexmos right version. it can be upgrade new firmware.
Support Camera：
SONY NEX-3n、3nl、3ny。
SONY NEX-5n、5r、5t。
SONY NEX-7、7n、7r。
Support Lens：
16F/2.8 Prime wide angle lens.16-55F Convertible lens (it is did not support convertible lens)
Shooting:
Camera gimbal cannot output film picture; should supervise it on the ground; should add HDMI
convert AV mode. The mould will be provided soon (optional)
