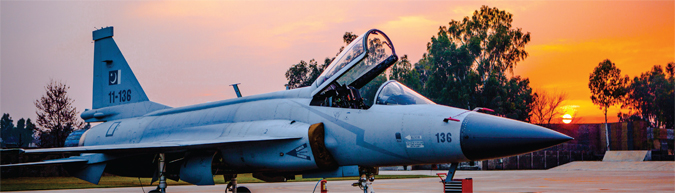

JF-17 Thunder is an advanced, light-weight, all weather, day / night multi-role fighter aircraft; developed as a joint venture between Pakistan Aeronautical Complex (PAC), Kamra and Chengdu Aircraft Industry Corporation (CAC) of China. It possesses excellent air-to-air and air-to-surface combat capabilities. The state-of-the art avionics, optimally integrated sub-systems, computerized flight controls and capability to employ latest weapons provides decisive advantage to JF-17 over adversaries of same class. This, all weather, multi-role light combat fighter has remarkable high combat manoeuvrability at medium and low altitudes. With effective firepower, agility and combat survivability, the aircraft is likely to emerge as a potent platform for any air force.
Specifications
Physical Parameters
Length 49 ft
Height 15.5 ft
Wingspan 31 ft
Empty Weight 14,520 lb
Performance Parameters
Maximum Take Off Weight 27,300 lb
Max Mach No 1.6
Maximum Speed 700 Knots IAS
Service Ceiling 55,500 ft
Thrust to Weight Ratio 0.95
Maximum Engine Thrust 19,000 lb
G Limit +8,-3
Ferry Range 1,880 NM
Armament
No of Stations 07
Total Load Capacity 3400 lb
