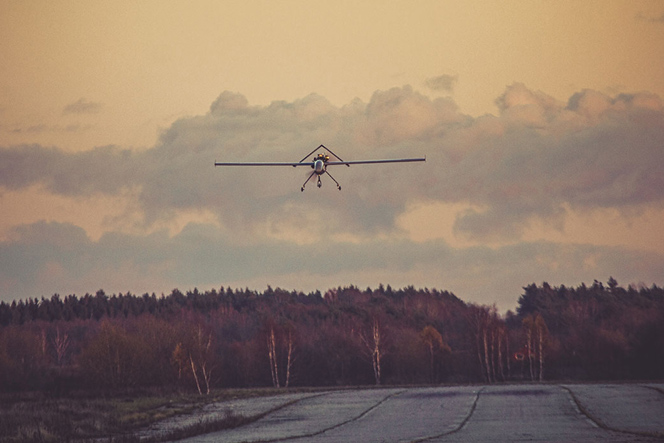

THEIA OPERATIonAL UAS
Reliable long endurance multifunctional platform meant for operational and tactical information collection with up to 24 hours continuous flight time and 25 kg payload capacity.
THEIA is a long-endurance UAV with heavy payload capacity for operational level information collection. It is an excellent platform for persistent surveillance, enhanced situational awareness and operations BVLOS. It is a perfect tool for IMINT, SIGINT and LIDAR missions.
Purpose: Division Area of Interests, Component Command Area of Operations, National Border Management.
KEY ADVANTAGES:
- 24h hours flight time
- 25kg payload capacity
- LOS and SATCOM communication
- Flexible sensor integration
- Low acoustic footprint
- Effective counter UAV measures
Technical details
Engine
4-stroke 110cc fuel injected gasoline engine, 12V/24V 650W generator
Dimensions 4,2 m wingspan, length 3,2 m
Weight 50 kg dry weight, 25 kg payload (up to 25 kg fuel)
Flight time up to 24h depending on payload configuration
Airspeed
90-150 km/h
Operational ceiling 5000m
Flight readiness 50-60 minutes
Standard payload
(custom solutions on demand)
Dual-axis stabilized camera gimbal:
EO sensor: Separate wide-angle cameras
IR sensor 1: SWIR camera
IR sensor 2: MWIR camera
Optional: Laser rangefinder, IR pointer, Laser designator
Features:
Gyro stabilized imagery
Geo-referenced images
Target tracking, Geo-locking
Moving Object Detection and Tracking
Datalink
(Line of Sight)
Dual frequency (telemetry and video)
Automatic tracking
Digital data link 100 - 120 km LOS
Frequency Hopping Spread Spectrum (FHSS) for increased jamming resistance
Encryption: AES-256
SATCOM
Autopilot
Triple redundancy autopilot each with separate AHRS and barometric sensor, dual airspeed sensors, dual GPS sensors. Extendable dual CANaerospace bus, supports multiple data links.
Automatic takeoff and landing
Automatic navigation between user-defined waypoints
Real-time modification of waypoints
Loiter modes
Scan patterns
Emergency contingency routes and landing areas
Warning displays
Special Counter UAV resistance measures
GPS; GLONASS; INS navigation
Sensors
DGPS and RTK GPS for enhanced position accuracy.
onboard high performance MEMS IMU for orientation.
