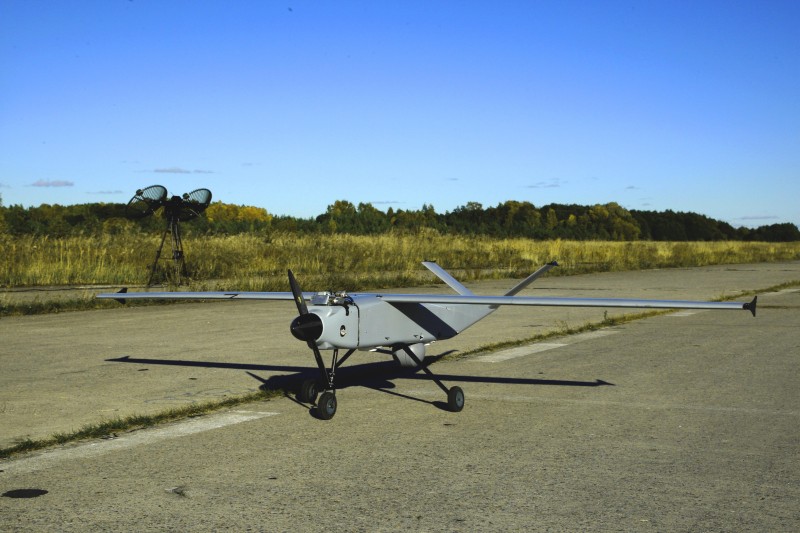

STREAM TACTICAL UAS
Robust and versatile unmanned aircraft system with over 8 hours continuous flight time and 6 kg payload capacity.
STREAM is a robust and versatile UAV with both runway and catapult/parachute launch and recovery option. Five configurable payload bays make it an excellent platform for Surveillance, Situational Awareness, IMINT, SIGINT, LIDAR and aerial mapping missions.
Purpose: Brigade/Task Force Area of Operations, Law Enforcement and Security Services, Border Security, Costal Defense
KEY ADVANTAGES:
- 8 hours flight time
- 6 kg payload capacity
- Launch-and-recover configurations: runway take-off and landing or catapult launch / parachute-recovery
- Multiple payload bays
- Effective counter UAV measures
- Low radar signature
Security
AES-256 encrypted telemetry, imagery and voice
Command and Control
Handheld or Fixed Ground Control Station
Interoperability
- Up to NATO Level 5 Interoperability
- Remote Video Terminal
- STANAG 4609 compliant KLV metadata
Tecnical details
Propulsion
4-stroke 50cc gasoline engine, 12V/24V 350W generator
Dimensions 3,5 m wingspan; 2,2 m long
Weight 6kg payload (up to 5L fuel), MTOW 26kg
Endurance 8h
Airspeed 80-130 km/h
Operational ceiling 500-2000 m
Flight readiness Less than 30 minutes
Standard payload
(custom solutions on demand)
Triple EO/IR/IR gimbal
EO sensor: 30x optical zoom, 720p HD
IR sensor 1: TAU2 640480, 25 mm lens
IR sensor 2: TAU2 640480, 60 mm lens
Features:
Gyro stabilized imagery
Geo-referenced images
Target tracking, Geo-locking
Moving Object Detection and Tracking
Optional: Laser rangefinder, IR illuminator, Laser target designator
Datalink
(Line of Sight)
100-120 km (LOS)
Frequency Hopping Spread Spectrum (FHSS)
Encryption: AES-256
Automatic tracking
Autopilot
Triple redundancy autopilot each with separate AHRS and barometric sensor, dual airspeed sensors, dual GPS sensors. Extendable dual CANaerospace bus, supports multiple data links.
Automatic takeoff and landing
Automatic navigation between user-defined waypoints
Real-time modification of waypoints
Loiter modes
Scan patterns
Emergency contingency routes and landing areas
Warning displays
Special Counter UAV resistance measures
GPS; GLONASS; INS navigation
Sensors
DGPS and RTK GPS for enhanced position accuracy.
onboard high performance MEMS IMU for orientation.
