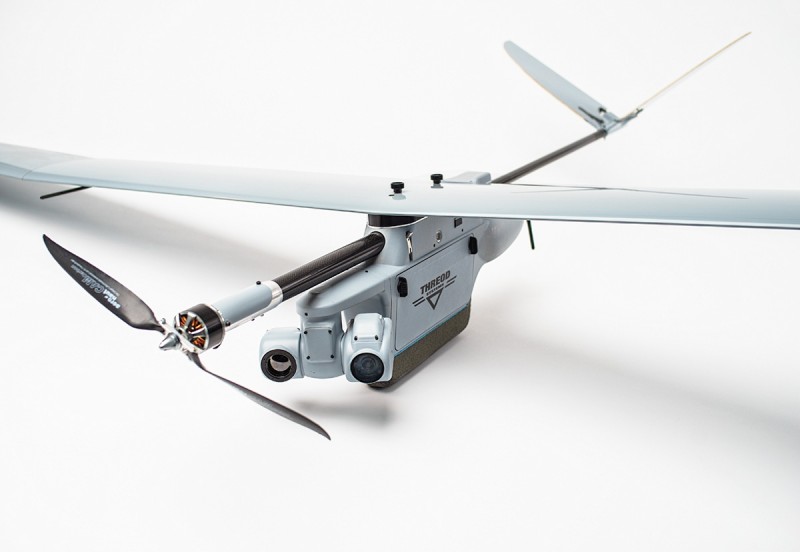

EOS mini-UAS
Mini-UAV that brings tactical UAV capabilities down to mini UAV level.
EOS is a hand-launched and parachute-recovered electric mini UAV designed to deliver stable and clear imagery. EOS brings tactical UAV capabilities down to mini UAV level. Proudly tested and used in NATO ISAF and KFOR operations.
Purpose: Platoon Area of Operations, Force Protection, Point Security, First Responder Support, Border Security and National Border Management
Advantages:
Over 2 hours flight time guaranteed
Extremely low noise – silent at 150m
Outstanding aerodynamics
Powerful and fully stabilized dual EO/IR gimbal
Plug & play aerial mapping payload
HD video feed and on-board recording
Applications:
MILITARY: Battlefield reconnaissance and surveillance functions, fire support and battlefield damage assessment.
GOVERNMENT: Security services, search and rescue, border guard patrol, firefighting, police, riot control and mapping.
COMMERCIAL: Security companies, property surveying, power line survey, forestry, mapping, precision agriculture and environmental research.
Technical Details EOS UAS Set
Engine
Electrical BLDC motor
Dimensions
3,5 m wingspan
1,6 m long
Weight
6,9 kg
Up to 1,5 kg payload
Flight time Over 2 h
Airspeed 50-100 km/h. Wind penetration 14m/s at 25m/s speed
Standard payload
Gyro-stabilized two-axis camera gimbal:
EO camera: 30x optical zoom, 720p HD
IR camera: 640480, FLIR TAU2 60mm or 35mm lens
Geo-location, geo-tracking, video tracking
HD video stream to Ground Control Station
HD onboard recording
Optional payload: Single axis photo camera gimbal for aerial mapping (less than 2cm/PX)
Data link and range
(Line of Sight)
Single digital data link integrated to HGCS
Up to 17 km LOS (extended range antenna)
Frequency Hopping Spread Spectrum (FHSS)
Encryption: AES-256
Autopilot
Threod Systems Autopilot TSAP6000
Automatic takeoff and landing
Automatic navigation between user-defined waypoints
Real-time modification of waypoints
Loiter modes
Scan patterns
Emergency contingency routes and landing areas
Warning displays
GPS, INS, GLonASS navigation
Ground Control Station
Handheld GCS for UAV control
Touch screen and joystick controls
Live picture stream
Remote Video Terminal
Real time video and telemetry streaming
Used in field, vehicle, command post
Standalone unit with router or with a computer
