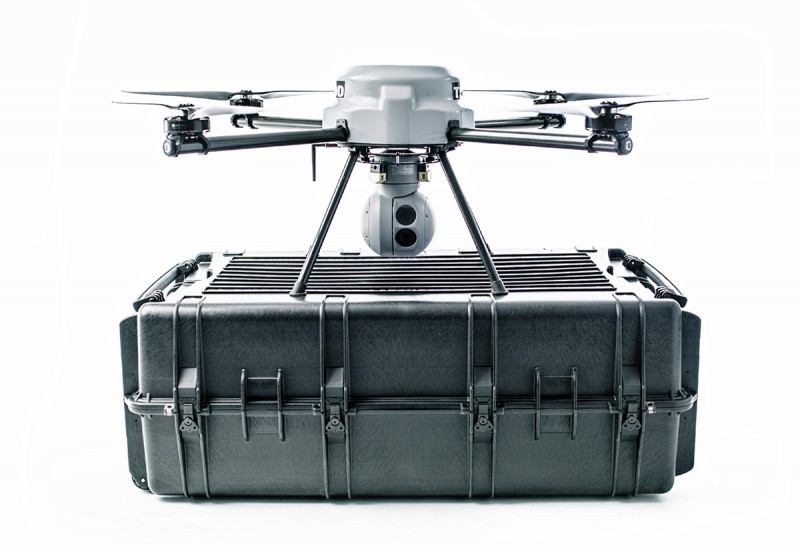

KX-4 LE MULTIROTOR
KX-4 LE (Long Endurance) is a heavy-lift multirotor with multiple payload options. It is a perfect tool for surveillance, rescue and law enforcement missions.
Purpose: Enhanced Situational Awareness for Police, Guard & Rescue Services, First Responders.
KEY ADVANTAGES:
- 6.1 kg lift capability
- Long endurance
- Fully autonomous or first-person view flight modes
- Multiple plug & play payload options
- Emergency parachute
- Detachable booms and landing gear for easy packing
Security
AES-256 encrypted telemetry and imagery
Command and Control
Handheld or Fixed Ground Control Station
Interoperability
Remote Video Terminal
STANAG 4609 compliant KLV metadata
Technical details
Dimensions
78x78 cm (138x138 cm with propellers)
Height 50 cm
Weight MTOW 16,7 kg (payload capacity 6,1 kg)
Flight time
70 min without payload
55 min 1 kg payload
45 minutes 2,5 kg payload
Airspeed 8 m/s to 14 m/s
Altitude
Optimal: 100 - 200 m AGL
Maximum: 500 m AGL
Payload
Triple EO/IR/IR gimbal
EO sensor: 30x optical zoom, 720p HD
IR sensor 1: TAU2 640480, 25 mm lens
IR sensor 2: TAU2 640480, 60 mm lens
Optional: Laser rangefinder, IR illuminator, Laser target designator
Features:
Gyro stabilized imagery
Geo-referenced images
Target tracking, Geo-locking
Moving Object Detection and Tracking
Data link range
(Line of Sight)
Single digital data link integrated to Handheld Ground Control Station (HHGCS)
4-5 km LOS HHGCS
Frequency Hopping Spread Spectrum (FHSS)
Encryption: AES - 256
Autopilot
Threod Systems autopilot
Automatic takeoff and landing
Automatic navigation between user-defined waypoints
Real-time modification of waypoints
Loiter modes
Scan patterns
Emergency contingency routes and landing areas
Warning displays
GPS, INS, GLonASS navigation
