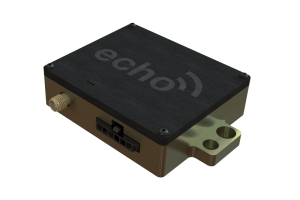

The ATU-20X is a remotely mounted ADS-B transceiver. It incorporates a dual-link (1090 MHz and 978 MHz) receiver and 978 MHz UAT Class B1S transmitter. ATU-20X features a direct wired communication for use with popular EFIS from Dynon, GRT and MGL Avionics. An integrated Wi-Fi access point also supports many popular EFB applications on iOS and Android.
ATU-20X is designed to use the aircraft’s existing altitude encoder and ADS-B compliant GPS position source. The uAvionix FYX GPS can be used in the event your EFIS manufacturer does not supply one.
A zero-install, internal wireless monitor decodes replies from legacy Mode C transponders for maximum retrofit capability.
The Echo ATU-20X is designed to meet the performance requirements of TSO-C154c, and is compliant with FAR 91.227 for operation in the National Airspace System.
Features
UAT Transmitter. Meets the performance requirements of TSO-154c Class B1S.
Dual-link ADS-B receiver. Receives legacy 1090MHz ADS-B traffic and UAT traffic and uplink data. Meets the MOPs of DO-260B and DO-282B.
Integrated Wi-Fi to transmit In-flight weather, NEXRAD radar, metaRs, TAFs, TFRs, AIRMETs, SIGMETs and NOTAMS to EFB applications.
Traffic information from both UAT and 1090ES provide a view of nearby aircraft
Setup Interface Options
EFIS (Dynon, MGL, GRT, AFS)
iOS/Android (Wi-Fi)
Mode, Squawk, Altitude. Ident
EFIS (Dynon, MGL, GRT, AFS)
Direct Sandia, Garmin)
Transponder Reply Monitor
GPS Position
EFIS
External GPS (NEMA, ADS-B+)
Traffic and UAT FIS-B (Weather) services
iOS/Android (Wi-Fi GDL 90, including Foreflight, FlyQ, iFly and many more)
EFIS EFIS (Dynon, MGL, GRT)
SMA Antenna Connector
US Patents Pending
