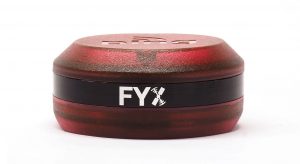

FYXnav-B is a high-integrity GPS navigation source with an integrated barometer. The FYXnav-B GPS combines a high precision WAAS GNSS sensor with an integrated RAIM processor for resilience against jamming, spoofing, and GPS range errors. FYXnav-B provides reliable navigation in challenging environments and the integrated high-resolution barometer provides pressure altitude information for use with the Ping ADS-B family.
The Ping mobile application for iOS and Android allows pilots to program their aircraft ICAO, callsign and aircraft type for broadcast over ADS-B.
Features
Performs in low sensitivity or high GPS multipath areas.
Supports GPS/SBAS GNSS constellations.
Battery backup option for fast TTFF.
UTC timing output for UAT ADS-B medium synchronization.
Integrated RAIM processor for security and integrity protection.
Advanced jamming and spoofing detection.
Uses SBAS corrections and health messages to detect and correct satellite range errors.
Satellite pseudo-range step errors detected and excluded.
SBAS fast and long term corrections applied.
High-resolution barometer for pressure altitude encoding.
