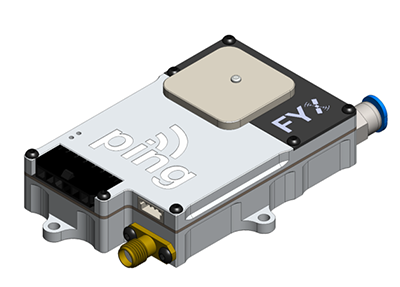

Ping200Si is a complete system designed to meet the conspicuity requirements for operating UAS in controlled airspace. This system includes an integrated, high integrity WAAS GPS sensor derived from uAvionix’s TSO’d FYX technology, and a precision, temperature controlled, barometric pressure sensor with accuracy beyond 80,000ft. The all-in-one design is ideal for rapid deployment on almost any UAS including popular OEM platforms such as the DJI Matrice 100 and Matrice 600 series.
Ping200Si Specifications
Specification Value
Input Power 11-33V
2W Ave On/Alt.
0.1W Standby
Size 45x7017mm
Weight 100 grams
Operating Temperature -45° to 80°C
WAAS GPS
Specification Value
Augmentation SBAS
Sensitivity -167dBm
Altimeter
Specification Value
Range -1000 to 80,000ft
Sensitivity 5mm FESTO
