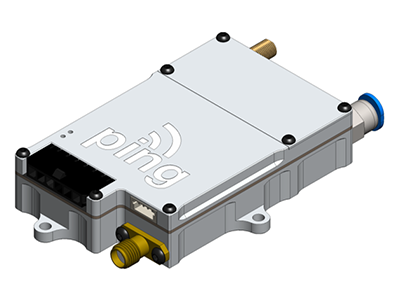

Ping200Sr offers the same all-in-one packaging of ping200Si but allows for remote mounting of the GPS antenna.
Ping200Sr Specifications
Specification Value
Input Power 11-33V
2W Ave On/Alt.
0.1W Standby
Size 45x7017mm
Weight 100 grams
Operating Temperature -45° to 80°C
WAAS GPS
Specification Value
Augmentation SBAS
Sensitivity -167dBm
GPS Antenna
Connector MCX
Altimeter
Specification Value
Range -1000 to 80,000ft
Sensitivity 5mm FESTO
