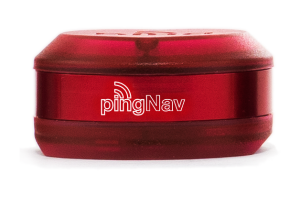

pingNAV is the world’s smallest, lightest and most affordable ADS-B OUT compliant navigation source. ADS-B (Automatic Dependent Surveillance – Broadcast) helps aircraft operators sense and avoid possible collisions. ADS-B is mandated by the FAA for all aircraft in the U.S. National Airspace by 2020.
Features
pingNAV supports GPS/QZSS, GLONASS, Galileo satellite constellations and a battery backup for quicker position initialization. Dual static ports for pressure altimeter readings and integrated security and integrity technologies including Receiver Autonomous Integrity Monitoring (RAIM) and Satellite based Augmentation System (SBAS) to detect and correct errors improving accuracy, reliability and availability.
Supports GPS/QZSS, GLONASS, Galileo concurrent GNSS
Battery backup for fast FTTF
Directly connects to Ping2020 transceiver
Dual boundary layer static pressure ports
UTC timing output for UAT ADS-B medium synchronization
Designed to meet DO-229D MOPs
Integrated Security and Integrity protection
Uses SBAS corrections and health messages to detect and correct satellite range errors
Advanced jamming and spoofing detection
Satellite pseudo-range step errors detected and excluded
SBAS fast and long term corrections applied
Program with unique ICAO using the Ping App.
