DEscriptION
PTP-03 is a powerful backlash-free manipulator working on very high accuracy and high angle speed drives with feedback coupling.
This device is designed for fast moving object tracking, long distance moving objects surveillance. PTP-03 can operate on moving objects. Device can handle equipment up to 100 kg.
PTP-03 can be upgraded with CCD cameras with large zoom lens, cooled thermographic cameras, laser telemeters, directional antenna and spotlight.
Device can be used as a turret in guidance system, when placed on moving objects .

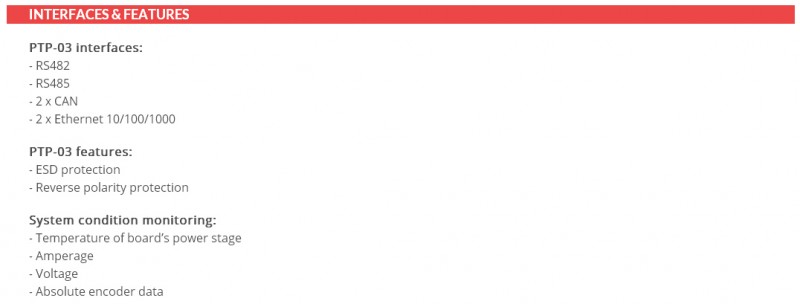

PTP-03 has 12 digital channels /5А, 4 power supply channels /10А and 2 Ethernet channels (1000baseT or 100baseT).
PTP-03 Pan-Tilt Platform. PTP-03 is fully compatible with our GCS (Ground Control Station) of ACS (Automatic Control System of moving objects), it can be combined with other systems as well.
