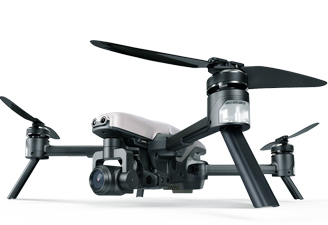

Aircraft
Main Rotor Dia.: 177mm
Dimensions (L x W x H)： 229x279x133mm
Weight: 890g(batteries included)
Remote Controller： DEVO F8S
Main board: VITUS 320
Brushless Motor: WK-WS-28-017A
Brushless ESC: VITUS 320
Battery: 11.4V 5200mAh LiPo 3S
Flight Time: 22minutes for positioning flight (with10% battery level residual) 25minutes for ultimate flight
Working temperature: -10℃~+40℃
Gimbal
Controllable turn range: -90°~ 0° pitch
Optical flow visual positioning system
Operating environment: Surfaces with rich patterns, and sufficient illumination (more than15 lux, indoor lights are on)
Camera
Image Sensor: SONY: 1/2.3” CMOS; pixel 12MP
Lens: FOV 85° ; 4.4mm; f/2.8 aperture
ISO Scope: 100-12800
E-shutter: 1/30-1/8000
Photo resolution: 40003000(12MP) 38402160(8MP)
Record resolution: UHD: 38402160(4k) 30fps FHD: 19201080 30fps/60fps
Max. code rate of video storage: 64Mbit/s
Supported file system & format: Fat32; exFat
Picture format: JPEG
Video format: MP4
Memory card supported: Micro SD card，max. 64G
DEVO F8S remote controller
Dimensions (L x W x H): 173x101x71mm
Working frequency: 2.4G
Signal range: about 1.5KM (open without shelter, no electromagnetic interference)
Built-in battery: 7.4V 2200mAh Li-po 2S
