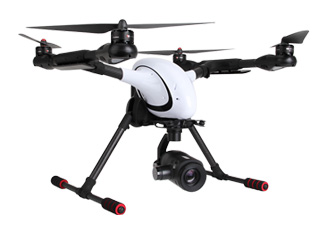

Aircraft specifications
Main Rotor Dia 346mm
Overall (L x W x H) 473 x 463 x 300mm
Weight 3650g (Battery included)
Transmitter DEVO F12E(black version)
Receiver/Main Controller FCS-RX709
Brushless Motor WK-WS-42-002
Brushless ESC Voyager 3 (R/B)
2.4G Bluetooth Datalink BT-2403A(FCC) & BT-2401B(FCC) / BT-2404A(CE) & BT-2402B(CE)
BT-2403A(FCC) & BT-2403B(FCC) / BT-2404A(CE) & BT-2404B(CE)
Battery 29.6V 3000mAh 10C(8S) LiPo x2
Flight Time Approximately 25 minutes
Working environment -10℃ ~ +40℃
a. Video(Camera specifications)
Video Resolution 1920 x 1080 60fps
Micro High Speed SD card Max 64G
Video Format MOV
Photo Format MJPG
b.5.8G wireless image transmission
FCC Bind B section 4 channels
CE Bind B section 8 channels
FCC Output Power ≤200mW
CE Output Power ≤25mW
Gimbal specifications
Control accuracy 0.02°
Control range Pitch rotation -120°~+60°
Horizontal ±360° continuous rotation
